Micro stage from Steinmeyer provides travel of 50 mm

Feb. 6, 2012

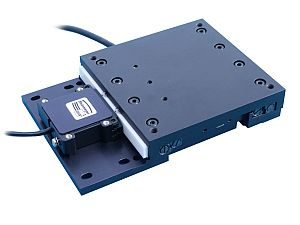

The MT 105-50-LM micro manipulator stage measures 105 × 151 × 25 mm and weighs 1.0 kg.

The MT 105-50-LM micro manipulator stage measures 105 × 151 × 25 mm and weighs 1.0 kg. Made from anodized aluminum, the standard table offers travel of 50 mm with positional accuracy of 1 μm, straightness/flatness runout of ±1 μm, and repeatability of ± 0.2 μm. A linear encoder has 0.1 μm resolution.
Steinmeyer
Burlington, MA

www.steinmeyer.com

More Products

-----

PRESS RELEASE

NEW LIGHT WEIGHT MICRO MANIPULATOR SYSTEM

BURLINGTON, MA, December 6, 2011 --Steinmeyer, Inc. announced a new high precision, light weight, micro manipulator stage MT 105-50-LM. This stage is an excellent choice for applications in the semiconductor metrology, biomedical, miniature robotics and laser industry.

With a sleek low profile design, it has a footprint of 105 mm x 151 mm, height of only 25 mm and amazingly only weighs 1.0 kg! Manufactured from high strength anodized aluminum, the standard table offers a travel of 50 mm with a positional accuracy of 1µm (micrometer), straightness/flatness runout of +/- 1µm and repeatability of +/- 0.2 µm. Features include: preloaded cross roller bearings, fixed stops and incremental linear encoder with 0.1 µm resolution. This product can be provided as a XY stage without adapter plate and can also be configured as a XYZ system with an optional bracket. Ultra high vacuum, clean room or non-magnetic preparation is available on request.

Steinmeyer is able to provide exactly what customers require and desire versus something close that may be in a catalog.

The Steinmeyer group is comprised of two manufacturing divisions located in Germany. August Steinmeyer GmbH & Co. KG (located in Albstadt) has been setting standards for high precision ball screws for over 40 years and prides itself on high quality, innovative designs to meet demanding customer requirements. Our Feinmess Dresden (FMD) division has been producing an extensive line of high precision positioning systems for well over 130 years.

For further information on this new product or others in our extensive product portfolio call 1-781-273-6220 or visit the Steinmeyer group at the following web site: www.steinmeyer.com

-----
