Piezo stage from Piezoconcept uses totally frictionless assembly

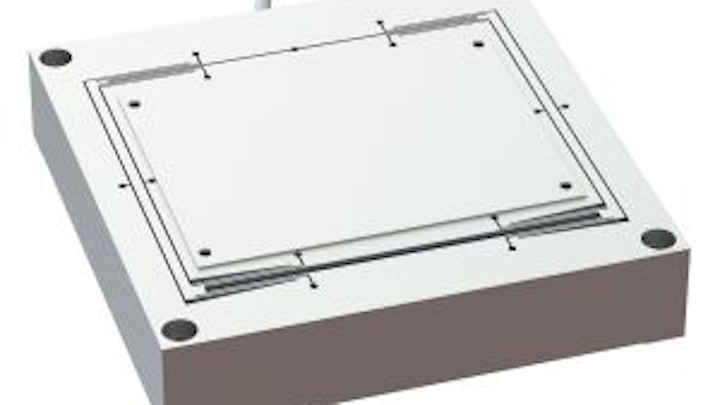

The Super Long Range 1500 piezo stage can move 1500 microns in closed-loop mode.

Content Dam Lfw Online Articles 2016 12 1612lfw Pro 3 Web

The Super Long Range 1500 piezo stage can move 1500 μm in closed-loop mode. This stage uses totally frictionless assembly and has damage-tolerant piezostacks—if the piezostack is damaged, the remaining ceramic elements can continue to operate. The stages can be combined to form two- or three-axis nanopositioning systems.
Piezoconcept
Lyon, France

www.piezoconcept.com
