Rotary stage from Intellidrives offers unlimited rotation

Sept. 27, 2011

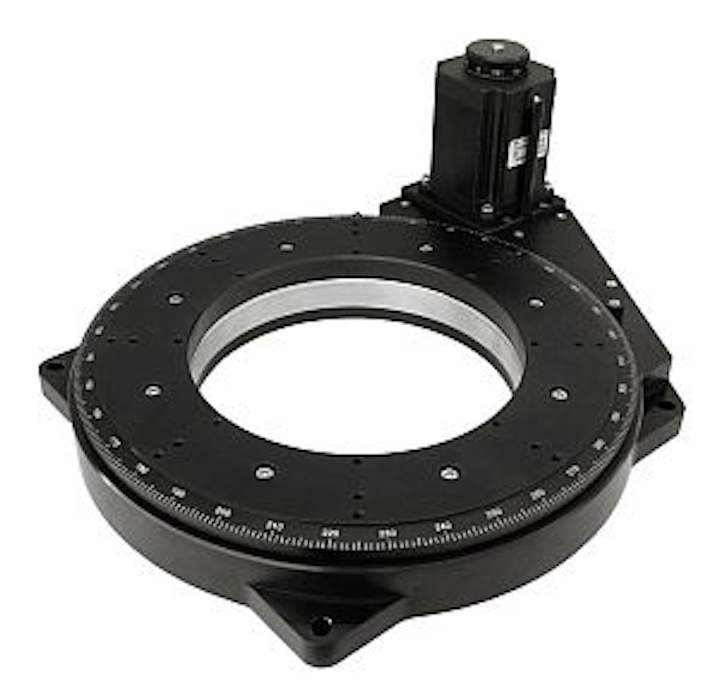

The RTHP-B-150 motorized, belt-driven, large-aperture rotary stage is designed for light- to medium-load applications.
10 Lfw 9 Intellidrives

The RTHP-B-150 motorized, belt-driven, large-aperture rotary stage is designed for light- to medium-load applications. It has a center aperture of 150 mm, low profile of 38 mm, load capacity of 50 kg, speed of 300 rpm, repeatability of 15 arcs, and unlimited rotation. It comes with a preloaded 4-point ball bearing and a stepper/servo motor with encoder.
Intellidrives
Philadelphia, PA

[email protected]

More Products

-----

PRESS RELEASE

SERVO BELT LARGE APERTURE ROTARY STAGE

Cost effective motorized belt driven Large Aperture Rotary Stage RTHP-B-150 features high accuracy and repeatability in a low profile package for light to medium load applications.

SPECIFICATIONS

*Center aperture 150 mm

*Low profile 38 mm

*Unlimited rotation

*Load capacity 50 kg

*Speed 300 RPM

*Repeatability 15 arc-sec

*Preloaded 4-point ball bearing

*Belt drive mechanism

*Stepper/Servo motor with encoder

*Motor up/down mount option

-----
