Vacuum Compatible Hollow Core Linear Voice Coil Servo Motor Has Peak force of 50.8 lbs.!

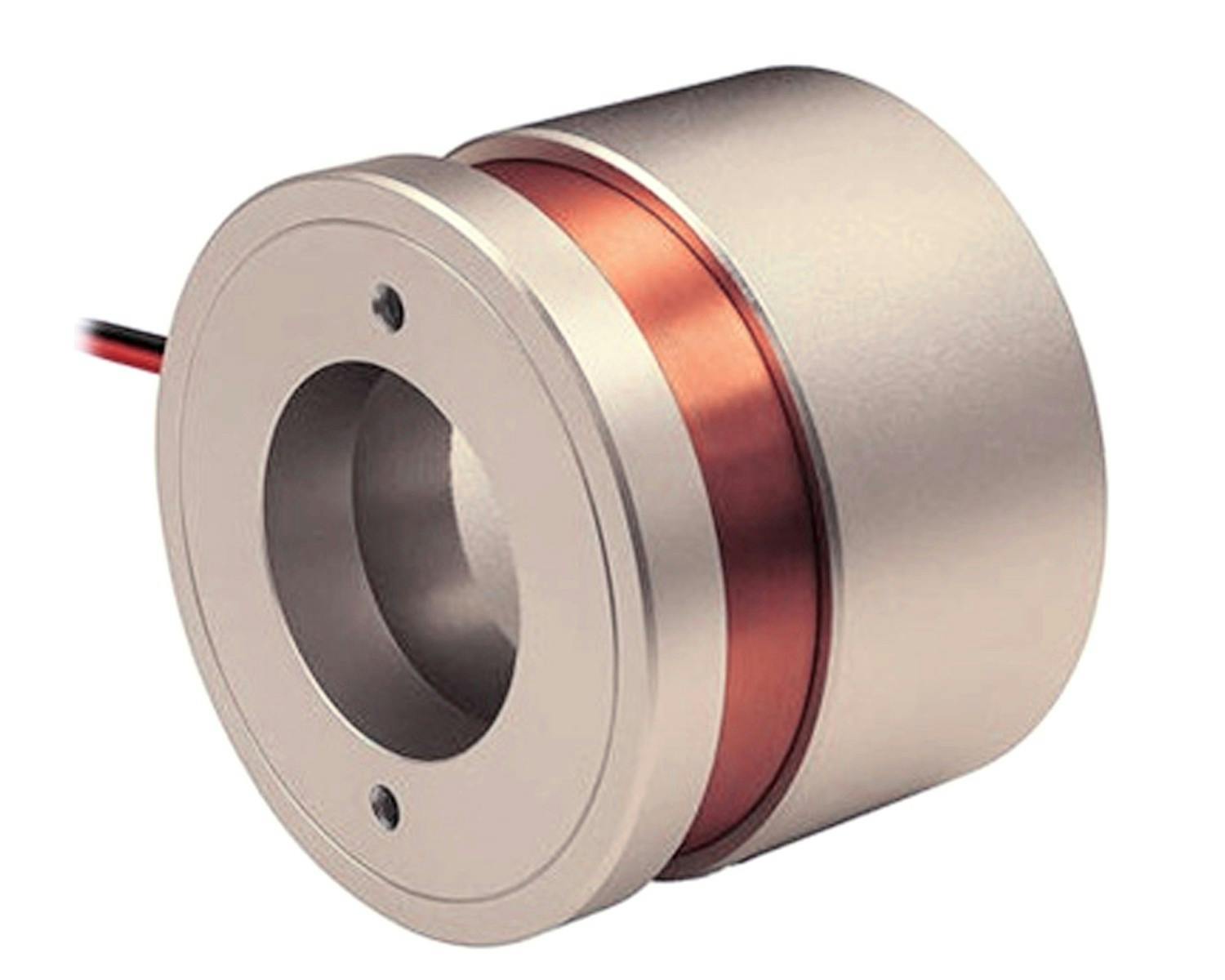

Van Nuys, CA – The vacuum compatible HVCM-095-051-051-01VAC Hollow Core Linear Voice Coil Servo Motor from Moticont, features an open aperture, a 1.0 in. (25.4 mm) stroke, high speed, and sub-micron positioning accuracy if an external high resolution position sensor is used! A smooth Electroless Nickel plating prevents gassing off contaminates in a vacuum, is noncorrosive, nonabsorbent, and is easy to clean and sanitize for use in medical and laboratory equipment.
This Vacuum Compatible Linear DC Servo Motor has a continuous force rating of 16.1 lbs. (71.4 N) and a peak force of 50.8 lbs. (225.8 N) at a 10% duty cycle. Clean and quiet, this, “Made in America”, non-commutated, long life brushless linear servo motor features: High acceleration/deceleration, zero cogging and zero backlash when connected directly to a load.
The 2.000 in. (50.8 mm) diameter open aperture of the Vacuum Compatible HVCM-095-051-051-01VAC Hollow Core Voice Coil Linear Servo Motor allows for optics, illumination, laser beams, tubing, and cable passage. The extended length of the motor is 3.0 inch (76.2 mm) at mid-stroke. This high speed, low inertia motor is Ideal for: Aerospace, clamping, assembly, testing, optical focusing, positioning, laser beam steering, wafer handling, dynamic vibration absorption and vibration testing, laser drilling, cutting, welding, and machining applications.
Two threaded 10-32 UNF-2B X 0.38 deep mounting holes on 2.750 in. (69.9 mm) centers in the housing and coil ends allow for flexible and easy integration into new and existing applications. If a longer stroke, higher force, a smaller footprint, or customized mounting is required, please consult Moticont team of engineers. The HVCM-095-051-051-01VAC Hollow Core Voice Coil Linear Servo Motor is available in a complete Plug-and-Play, single or multi-axis Servo Control System.
About Moticont - Moticont is a manufacturer of motion control products. Our product line includes voice coil motors, three phase brushless motors and positioning stages and slides.
Moticont is committed to exceeding Our customers' quality expectations and industry standards throughout the design, manufacturing, service and technical support phases. Our modern manufacturing facility, highly controlled processes, committed staff, and extensive testing complement our product design strengths. This enables us to supply our clients with specialized small orders to high volume just-in-time deliveries.
We offer an extensive line of standard products ready to be shipped immediately from stock, and when standard products are not quite right for an application, highly trained design engineers are always available to develop custom motion control products to fit the specific needs or our customers.
For additional information contact the Sales Team at Moticont, 6901 Woodley Ave, Van Nuys, CA 91406; Toll Free: +1 (888) 785-1804, Tel: +1 (818) 785-1800, E-Mail [email protected] or visit the website at http://www.moticont.com
