New High Continuous Force Voice Coil Motor Has 3 Times the Peak Force, and Sub-micron Repeatability!

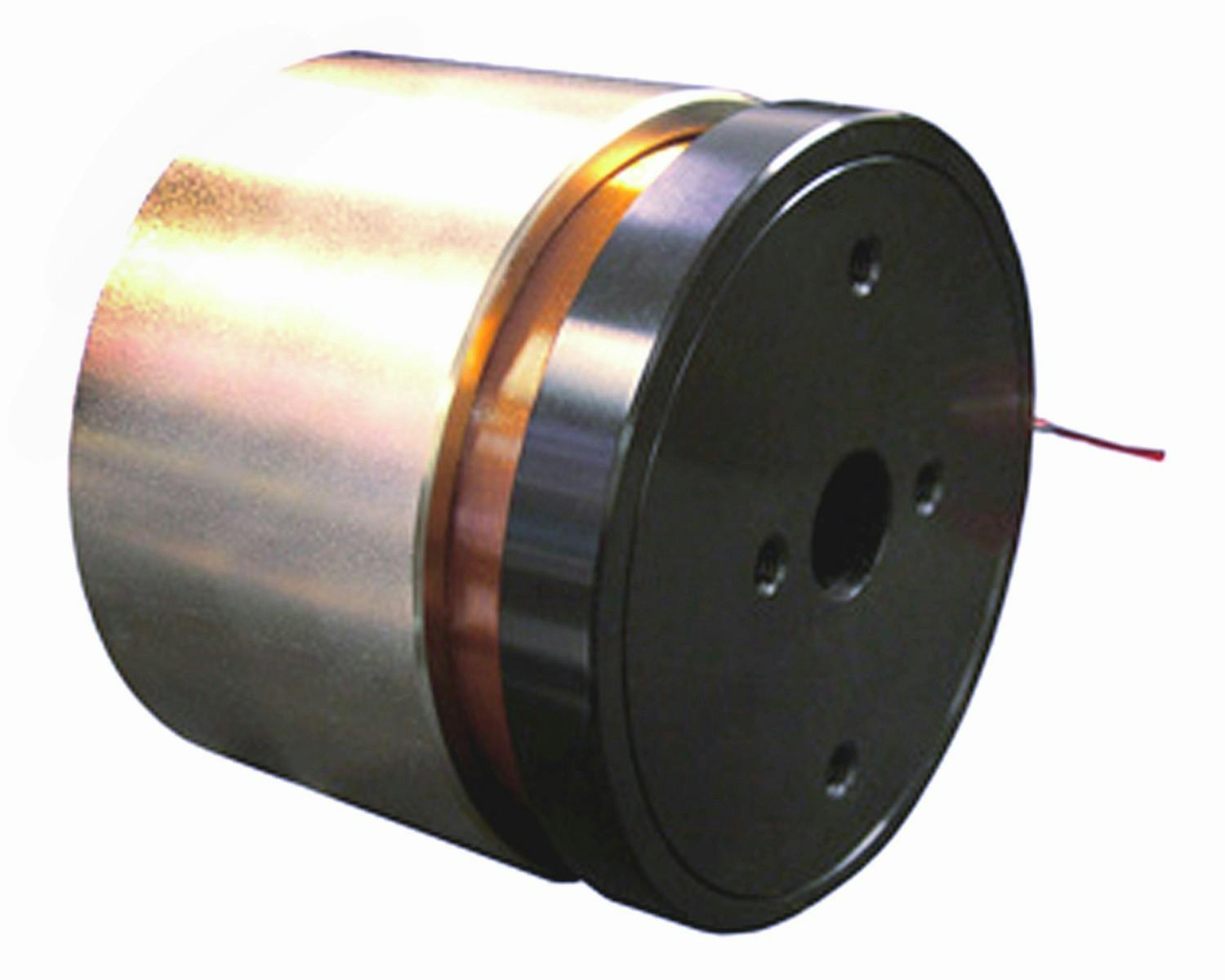

Van Nuys, CA – The new, LVCM-070-038-02 linear voice coil motor from Moticont has high continuous force of 26.1 lbs. (116.3 N), with the peak force of 82.6 lbs. (367.9 N). This is a new addition to Moticont’s series of 2.750 in. (69.9 mm) diameter voice coil motors. This clean, quiet, efficient, low inertia, high acceleration, brushless high speed linear motor has zero cogging and features high accuracy, and a high repeatability to less than1 micron (0.00004 in.) when operated in a closed loop as a DC servo motor when used with high resolution position sensor!
This compact, high force linear servo motor is ideal for: work holding and clamping, antenna positioning, medical devices, assembly, testing, laser machining and drilling, wafer handling, optical focusing, dynamic vibration absorption, scanners and laser beam steering and filtering. The LVCM-070-038-02 linear voice coil motor has a stroke length of 0.250 inches (6.35 mm) and is easily added to new or existing applications using 10-32 UNC-2B mounting holes on each end of the motor.
Is there a need for a smaller or larger diameter motor, one with longer travel, or more force? There are 12 series of Moticont's LVCM series motors based on diameter of this linear motor, and over 50 models based on length of stroke and/or force to select from. To find the right motor for you application go to http://moticont.com/voice-coil-motor.htm
About Moticont - Moticont is a manufacturer of motion control products. Their product line includes voice coil motors, three phase brushless motors and positioning stages and slides.
Moticont is committed to exceeding their customers' quality expectations and industry standards throughout the design, manufacturing, service and technical support phases. Our modern manufacturing facility, highly controlled processes, committed staff, and extensive testing complement our product design strengths. This enables us to supply our clients with specialized small orders to high volume just-in-time deliveries.
We offer an extensive line of standard products ready to be shipped immediately from stock, and when standard products are not quite right for an application, highly trained design engineers are always available to develop custom motion control products to fit the specific needs or our customers.
For additional information contact our sales team at Moticont, 6901 Woodley Ave, Van Nuys, CA 91406; Toll Free: +1 (888) 785-1804, Tel: +1 (818) 785-1800, E-Mail [email protected] or visit the website at http://www.moticont.com
