Nanotec linear actuators integrate a movable polygon profile

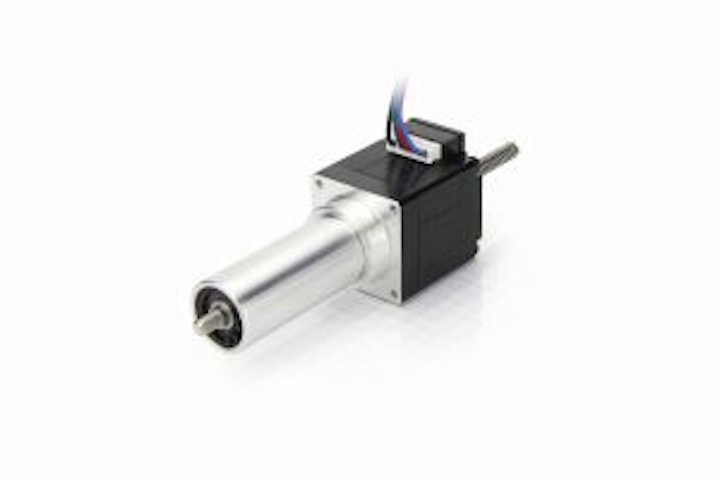

The LGA28 and LGA42 series captive linear actuators are offered with compact designs in sizes NEMA 11 (28 mm) and NEMA 17 (42 mm).

Content Dam Lfw Online Articles 2018 09 1809lfw Pro 7web

The LGA28 and LGA42 series captive linear actuators are offered with compact designs in sizes NEMA 11 (28 mm) and NEMA 17 (42 mm). The overall length of the guide is 10 mm longer than the working stroke, resulting in a small footprint. An integrated linear guide with a movable polygon profile allows high-precision feeding.

Nanotec

Feldkirchen, Germany

www.nanotec.de
