Molecular-crystal mechanical actuator is driven by light

Tokyo, Japan--A research team led by Masahiro Irie at Rikkyo University has created a cable-free microrobotic arm whose motion is driven by light.

Molecular-crystal mechanical actuator is driven by light
Molecular-crystal mechanical actuator is driven by light

Image copyright Wiley-VCH


Tokyo, Japan--A research team led by Masahiro Irie at Rikkyo University has created a cable-free microrobotic actuator whose motion is driven by light.1 This is in contrast to piezoelectric devices that require a cable for electric power -- a barrier to microscale applications or those in liquids.

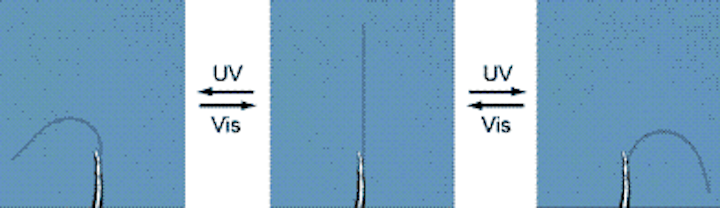

The robotic arms are made of two-component mixed organic crystals shaped like micro- or millimeter-sized flat rods. When they are irradiated with UV light (365 nm), the rods bend toward the light source; when irradiated with visible light with wavelengths longer than 500 nm, they straighten out again.

Akin to a bimetallic strip
The molecules in the crystals are an organic ring system containing five rings. The central structural unit is a diarylethene group. UV light induces rearrangement of the chemical bonds (isomerization) and causes a ring closure within the molecule. This results in the shape change of each molecule, which leads to a geometry change of the crystal. The crystal contracts, but only where it was exposed to the UV light -- that is, on the outer layer of the irradiated side of the rod. This causes bending similar to that of a bimetallic strip. Visible light triggers the reverse reaction, the newly formed sixth ring opens, the original crystal structure is restored, and the crystal straightens out.

The crystal contains two slightly different diarylethene derivatives. In this type of mixed crystal, the interactions between the individual molecules are weaker than those in a homogeneous crystal. The crystals can withstand more than 1000 bending cycles without evidence of fatigue. Depending on the irradiation, it is possible to induce extreme bending, to the point of taking a hairpin shape.

In contrast to previous concepts for “molecular muscles,” this new approach offers the possibility of translating the motion of individual molecules to the macroscopic level. Also, unlike synthetic micromuscles based on polymers, this new microrobotic arm is wireless and responds very fast, even at low temperatures and in water.

If one end of the crystal rod is anchored, alternating irradiation with UV and visible light can be used to induce the loose end to cause a small gear to turn. It can also work as a freight elevator: If attached to a ledge, the rod can lift a weight that is more than 900 times as heavy as the crystal itself. This makes it stronger than polymer muscles and equivalent to piezoelectric crystals.


REFERENCE:

1. Fumitaka Terao et al., Angewandte Chemie (2011); DOI: 10.1002/anie.201105585
