Metasurface lens on diamond single-photon quantum source efficiently collects photons

A nitrogen-vacancy (NV) diamond produces single photons; a metalens etched into its surface collects them, no microscope needed.

1907 Lfw09 12 Nb 4

One of the most important sources of entangled photons for research into quantum optical systems is the nitrogen-vacancy (NV) diamond, because entangled photons—and qubits, the units of quantum information necessary for quantum computing—can be created by diamonds at room temperature (other entangled photon sources typically need to be cryogenically cooled). In a nitrogen vacancy, one of the diamond’s carbon atoms has been replaced by a nitrogen atom, creating a defect that can absorb or emit light.

The practical challenge of collecting information from a single atom deep inside a diamond is a daunting one, however. Engineers at the University of Pennsylvania’s School of Engineering and Applied Science (Penn Engineering; Philadelphia, PA) have addressed this problem by etching a metalens onto the surface of the diamond, making it easier to collect light from the defects inside and eliminating the need for the bulky microscope ordinarily needed to collect photons from a diamond.

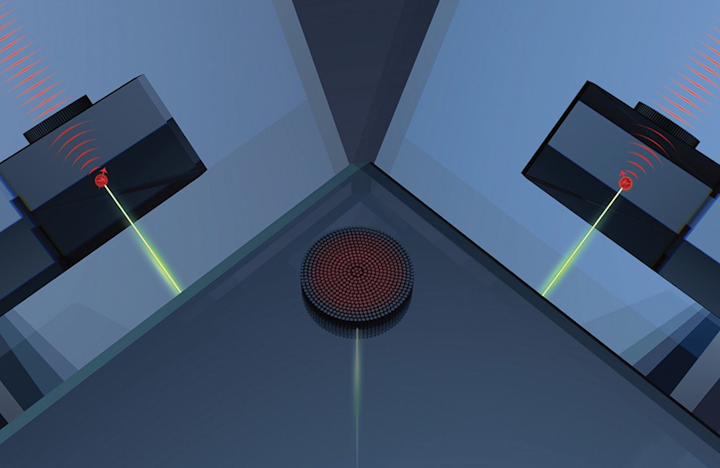

The researchers’ 30-μm-diameter metalens consists of a field of pillars, each 1 μm tall and 100 to 250 nm in diameter, arranged in such a way that they focus light like a traditional refractive lens. Etched onto the surface of the diamond and aligned with one of the NV centers inside, the metalens focuses the emitted photons directly into an optical fiber, streamlining the data-collection process. Because the metalens is an immersion lens (with diamond surrounding the source rather than air), it has a collection numerical aperture (NA) of >1, greatly aiding the collection process. With improvements, the metalens’ current NA of about 1.1 could potentially be boosted to near the theoretical maximum of about 2.4, say the researchers. Reference: T.-Y. Huang et al., Nat. Commun. (2019); https://doi.org/10.1038/s41467-019-10238-5.
