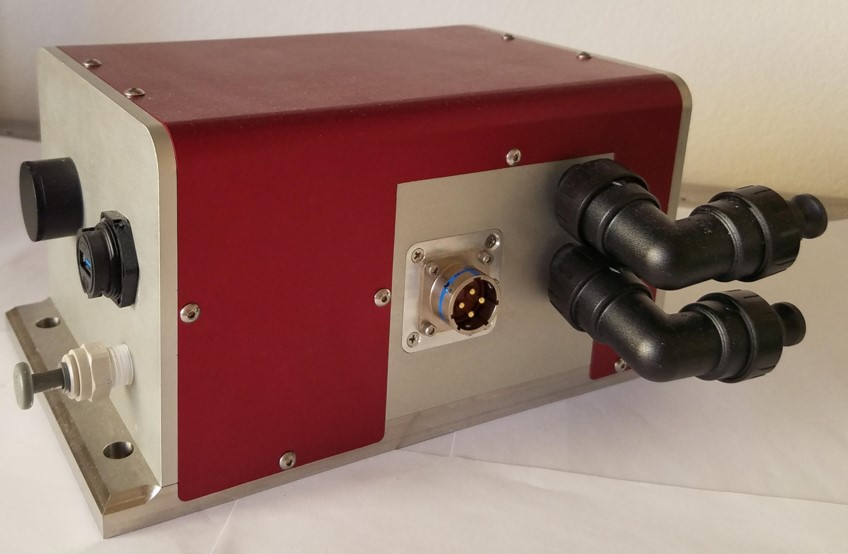

250 W Average Power & 5 kW Peak Power, Pulsed 2.94 μm Er:YAG Diode Pumped Laser

July 28, 2022

3 micron Laser Technology manufactures high power, pulsed diode pumped 2.94 μm Er:YAG lasers with average power up to 250W and peak power up to 7kW.

  • Average power: 250 W
  • Peak power: 5 kW
  • Wavelength: 2.94 μm
  • Pulse energies at different pulse lengths and frequencies: 7.5J @ 1.5ms @ 30 Hz, 5 J @ 1ms @ 50 Hz, 2.5 J @ 0.5ms @ 100 Hz
  • Pulse duration: 100 - 1500 μs
  • Repetition rate: 15 - 100 Hz
  • Maximum duty cycle: 5%
  • Monolithic design, no alignment needed
