IR-emitting MEMS metamaterial improves thermophotovoltaics

A new reconfigurable device makes it possible to collect waste heat at IR wavelengths and turn it into usable energy.

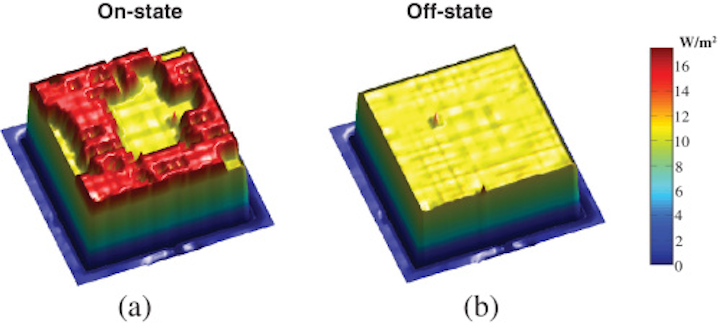

Emitted power density of a MEMS metamaterial is shown with the IR camera in (a) on and (b) off states. (Image credit: Optica)
Emitted power density of a MEMS metamaterial is shown with the IR camera in (a) on and (b) off states. (Image credit: Optica)

IMAGE: Emitted power density of a MEMS metamaterial is shown with the IR camera in (a) on and (b) off states. (Image credit: Optica)

A new reconfigurable device from Duke University (Durham, NC) that emits patterns of thermal infrared (IR) light in a fully controllable manner could one day make it possible to collect waste heat at IR wavelengths and turn it into usable energy.1 The new technology could be used to improve thermophotovoltaics, a type of solar cell that uses IR light, or heat, rather than the visible light absorbed by traditional solar cells.

RELATED ARTICLE: High-temperature emitter good for thermophotovoltaics

Scientists have been working to create thermophotovoltaics (http://www.laserfocusworld.com/articles/2011/03/photovoltaics-thermophotovoltaic-device-design-has-double-the-efficiency.html) that are practical enough to harvest the heat energy found in hot areas, such as around furnaces and kilns used by the glass industry. They could also be used to turn heat coming from vehicle engines into energy to charge a car battery, for example. "Because the infrared energy emission, or intensity, is controllable, this new infrared emitter could provide a tailored way to collect and use energy from heat," said Duke's Willie J. Padilla. "There is a great deal of interest in utilizing waste heat, and our technology could improve this process."

Padilla and doctoral student Xinyu Liu used a metamaterial engineered to absorb and emit infrared wavelengths with very high efficiency. By combining it with the electronically controlled movement available from microelectromechanical systems (MEMS), the researchers created the first metamaterial device with infrared emission properties that can be quickly changed on a pixel-by-pixel basis.

As reported in Optica, the IR-emitting device consists of an 8 x 8 array of individually controllable pixels, each measuring 120 x 120 microns. They demonstrated the MEMS metamaterial device by creating a “D” that is visible with an infrared camera. The researchers report that their emitter can achieve a range of infrared intensities and can display patterns at speeds of up to 110 kHz, or more than 100,000 times per second. Scaling up the technology could allow it to be used to create dynamic infrared patterns for friend or foe identification during combat.

In contrast to methods typically used to achieve variable infrared emission, the new technology emits tunable infrared energies without any change in temperature. Since the material is neither heated nor cooled, the device can be used at room temperature while other methods require high operating temperatures. Although experiments with natural materials have been successful at room-temperature, they are limited to narrow infrared spectral ranges.

The new reconfigurable infrared emitter consists of a movable top layer of patterned metallic metamaterial and a bottom metallic layer that remains stationary. The device absorbs infrared photons and emits them with high efficiency when the two layers are touching but emits less infrared energy when the two layers are apart. An applied voltage controls the movement of the top layer, and the amount of infrared energy emitted depends on the exact voltage applied.

Using an infrared camera, the researchers demonstrated that they could dynamically modify the number of infrared photons coming off the surface of the MEMS metamaterial over a range of intensities equivalent to a temperature change of nearly 20 C.

The researchers say that they could modify the metamaterial patterns used in the top layer to create different colored infrared pixels that would each be tunable in intensity. This could allow the creation of infrared pixels that are similar to the RGB pixels used in a TV. They are now working to scale up the technology by making a device with more pixels--as many as 128 x 128.

REFERENCE

1. X. Liu and W. J. Padilla, Optica 4, 4, 430-433 (2017).

SOURCE:Optica; https://www.osapublishing.org/optica/abstract.cfm?uri=optica-4-4-430
