Yellow HeNe laser from REO

May 21, 2012
REO, a manufacturer of high volume precision optical and laser solutions, has released a  594 nm (yellow) helium neon (HeNe) laser suitable for cost-sensitive bioinstrumentation.

REO, a manufacturer of high volume precision optical and laser solutions, has released a 594 nm (yellow) helium neon (HeNe) laser suitable for cost-sensitive bioinstrumentation. The new laser features a perfectly circular beam profile and superior beam quality (M²<1.05). It also offers high polarization purity (>500:1), with a guaranteed minimum output power of 2 mW. Additionally, these yellow lasers provide low noise output (<1% over the range 30 Hz to 10 MHz) and superior beam stability; long term beam drift is under 0.05 millirad. These HeNe lasers meet a growing demand for yellow wavelength excitation in fluorescence-based bioinstrumentation applications.

-----

PRESS RELEASE

REO Introduces Yellow HeNe Lasers for Fluorescence Excitation

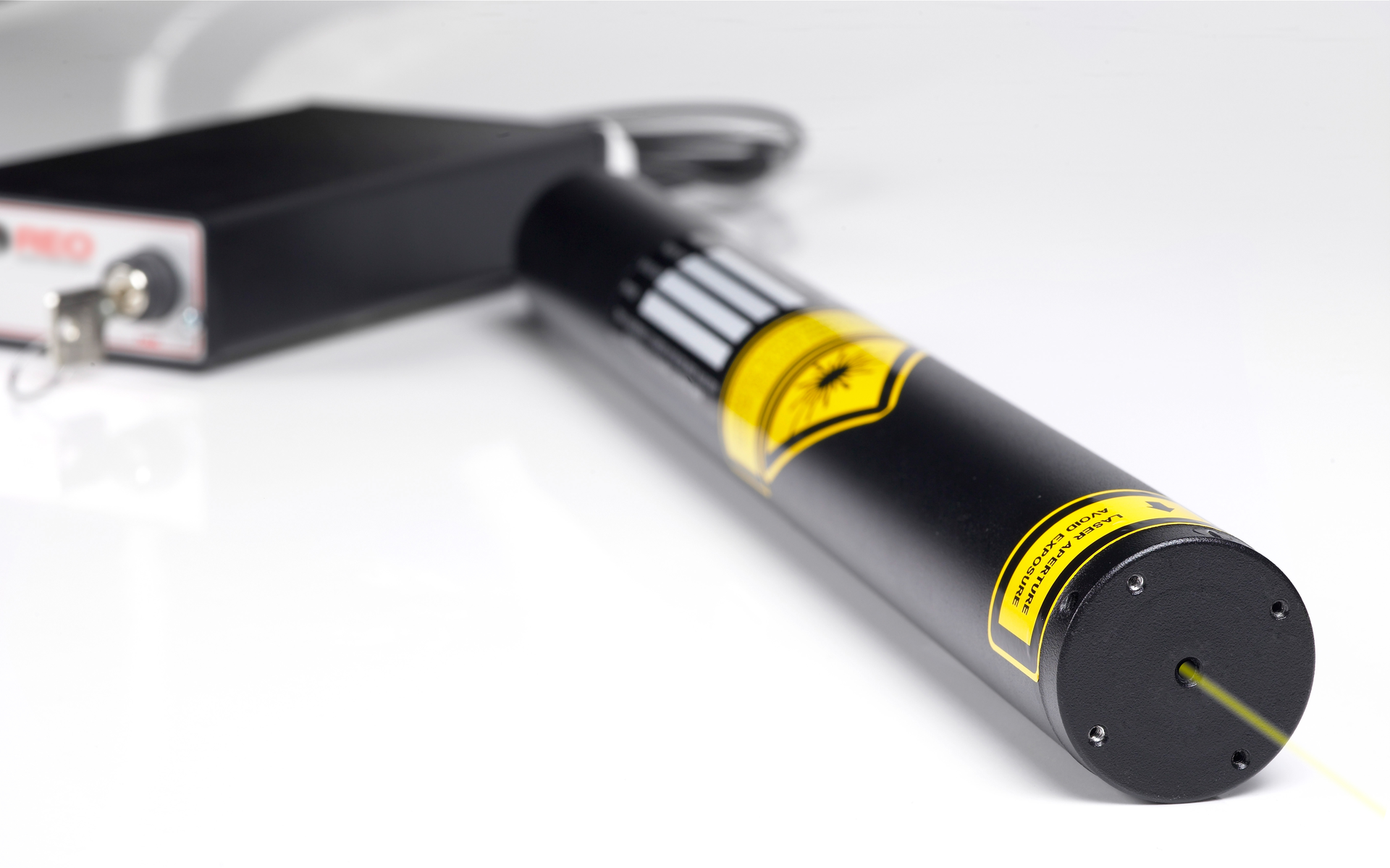

REO, a leading manufacturer of high volume precision optical and laser solutions, has released a 594 nm (yellow) helium neon (HeNe) laser suitable for cost-sensitive bioinstrumentation and fluorescence excitation applications. The new laser features a perfectly circular beam profile and superior beam quality (M²<1.05) leading to minimized loss in single mode fiber coupling. It also offers high polarization purity (>500:1), with a guaranteed minimum output power of 2 mW. Additionally, these yellow lasers provide low noise output (<1% over the range 30 Hz to 10 MHz) and superior beam stability; long term beam drift is under 0.05 millirad. They are packaged in an industry standard cylindrical head format (1.75 in/ 44.5 mm diameter), and the front plate supports a variety of fiber coupling options. REO offers a choice of OEM or CDRH-compliant power supplies, including time delay, key switch and interlock.

The gain in HeNe is weak at 594 nm, so achieving stable laser output at this wavelength requires high quality cavity mirrors with very low scatter and precision coatings capable of rejecting nearby laser lines. These must then be assembled on to laser tubes in a low contamination environment. REO is a vertically integrated manufacturer, producing its own laser tubes, mirror substrates and coatings all in house. The company routinely employs techniques such as superpolishing and ion beam sputtering (IBS) deposition in order to produce mirrors with extremely high reflectance and low scatter, together with superior environmental stability and mechanical durability characteristics.

These HeNe lasers meet a growing demand for yellow wavelength excitation in fluorescence-based bioinstrumentation applications such as confocal microscopy, flow cytometry, and drug discovery, as well as emerging applications in proteomics and genomics. The yellow output is ideal for use with fluorophores such as Texas Red and Alexa Fluor 594, as well as APC and its tandems. These applications will all benefit from the yellow HeNe’s perfectly round beam profile and stable output beam characteristics, eliminating the spatial filtering and collimation optics often required with other laser types.

About REO
REO produces high precision thin film coatings, optics and opto-mechanical assemblies for the ultraviolet, visible and infrared and HeNe laser systems. Located in Boulder, CO, the company primarily services medium to high volume OEMs including manufacturers of defense and aerospace systems, laser systems, semiconductor tools, medical systems, life sciences instrumentation and telecom equipment. REO is a privately held company. For more information, contact Mark Damery, Vice President and General Manager of Worldwide Sales, at +1-720-562-3213, e-mail [email protected], www.reoinc.com, or Susan Anway, Vice President of Finance and Chief Financial Officer at +1-720-562-3206, e-mail [email protected].

About the Author

LFW Staff

Published since 1965, Laser Focus World—a brand and magazine for engineers, researchers, scientists, and technical professionals—provides comprehensive global coverage of optoelectronic technologies, applications, and markets. With 80,000+ qualified print subscribers in print and over a half-million annual visitors to our online content, we are the go-to source to access decision makers and stay in-the-know.
