Bandpass filters from Edmund Optics use ion-beam sputtering
Techspec OD 6 laser-line bandpass filters are made using hard ion-beam sputtering for durability. They have >90% transmission at their specified wavelengths, with blocking of >6.0 optical density at 1.5% of the laser wavelength. They are available with center wavelengths of 532, 785, and 1064 nm, with diameters of 12.5 or 25 mm.
Edmund Optics
Barrington, NJ
www.edmundoptics.com
More Products
-----
PRESS RELEASE

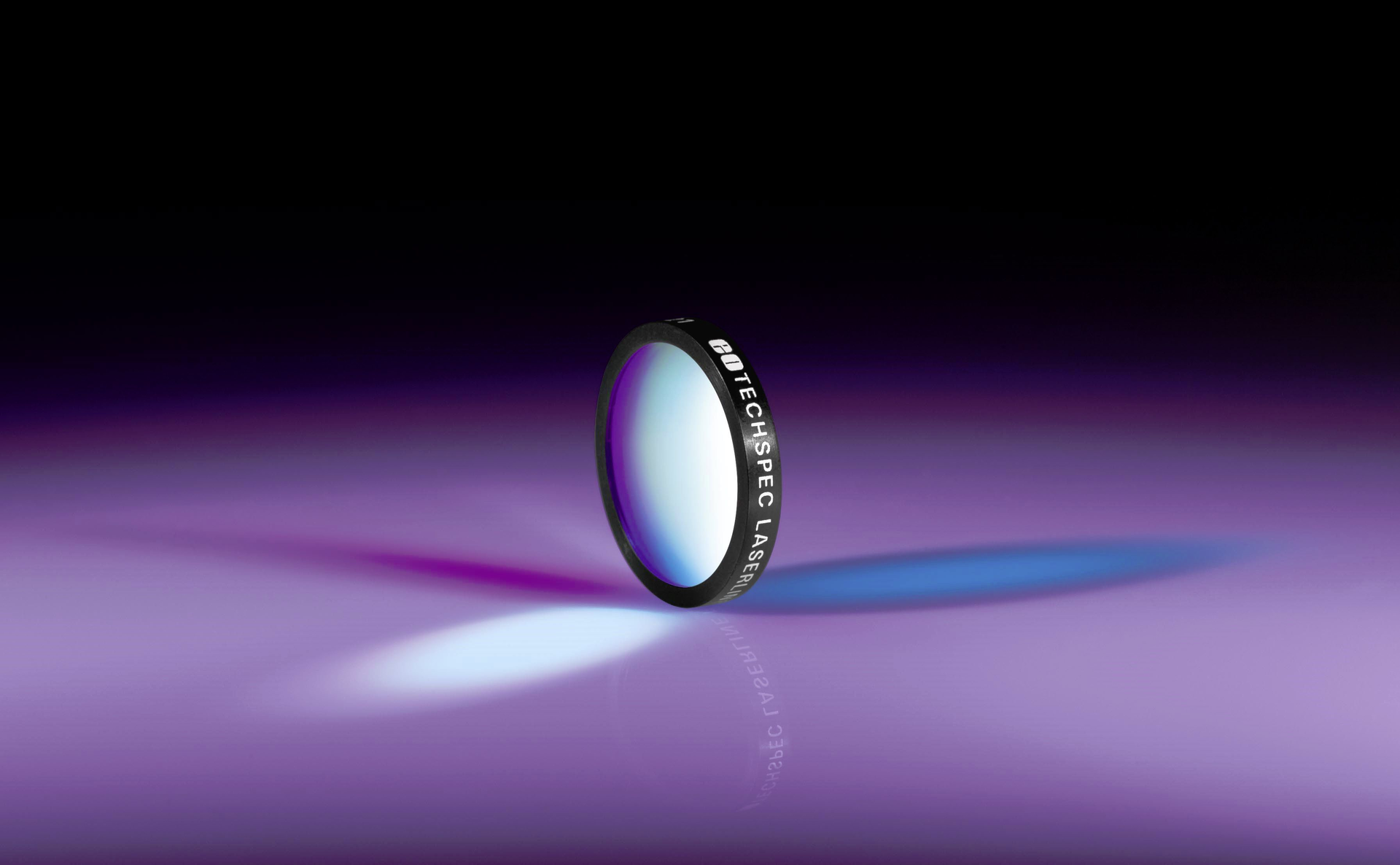

TECHSPEC® OD 6 Laser-Line Bandpass Filters offer maximum transmission of stimulated emission
Filters feature bandwidth as low as 2nm
February 8, 2012, Barrington, N.J. - Edmund Optics™ (EO), the premier provider of optical components, introduces new TECHSPEC® OD 6 Laser-Line Bandpass Filters. These versatile filters provide the high transmission and deep rejection necessary to isolate narrow spectral regions for use in a wide variety of applications.
Fabricated using "hard" ion-beam sputtering
TECHSPEC OD 6 Laser-Line Bandpass Filters have the advantage of being fabricated using "hard" ion-beam sputtering technology, which ensures high performance and allows these filters to be exceptionally durable. TECHSPEC OD 6 Laser-Line Bandpass Filters achieve greater than 90% transmission at their specified design laser wavelength. They offer impressive blocking of greater than 6.0 optical density at just +1.5% of the laser wavelength.
Filters eliminate noisy spontaneous emission
TECHSPEC OD 6 Laser-Line Bandpass Filters are designed to offer maximum transmission of stimulated emission, while eliminating noisy spontaneous emission. They provide a full width half maximum (FWHM) as narrow as 2 nm. TECHSPEC OD 6 Laser-Line Bandpass Filters are excellent for use in laser-based fluorescence instrumentation and Raman spectroscopy, as well as in analytical and medical laser systems. The filters are available with center wavelengths of 532 nm, 785 nm and 1064 nm with diameters of 12.5 mm and 25 mm. TECHSPEC OD 6 Laser-Line Bandpass Filters are in-stock and available for immediate delivery for fast turnaround and excellent value.
About EO:
Edmund Optics® (EO) is a leading producer of optics, imaging, and photonics technology for R&D, electronics, semiconductor, pharmaceutical, biomedical, and military markets around the globe. EO is the world's largest supplier of off-the-shelf optical components. Customers can purchase items by contacting EO at (800) 363-1992, via the new interactive catalog , the website at www.edmundoptics.com, or requesting their print catalog.
-----
