Halogen light source from McPherson features a mirror-condenser

Oct. 12, 2012

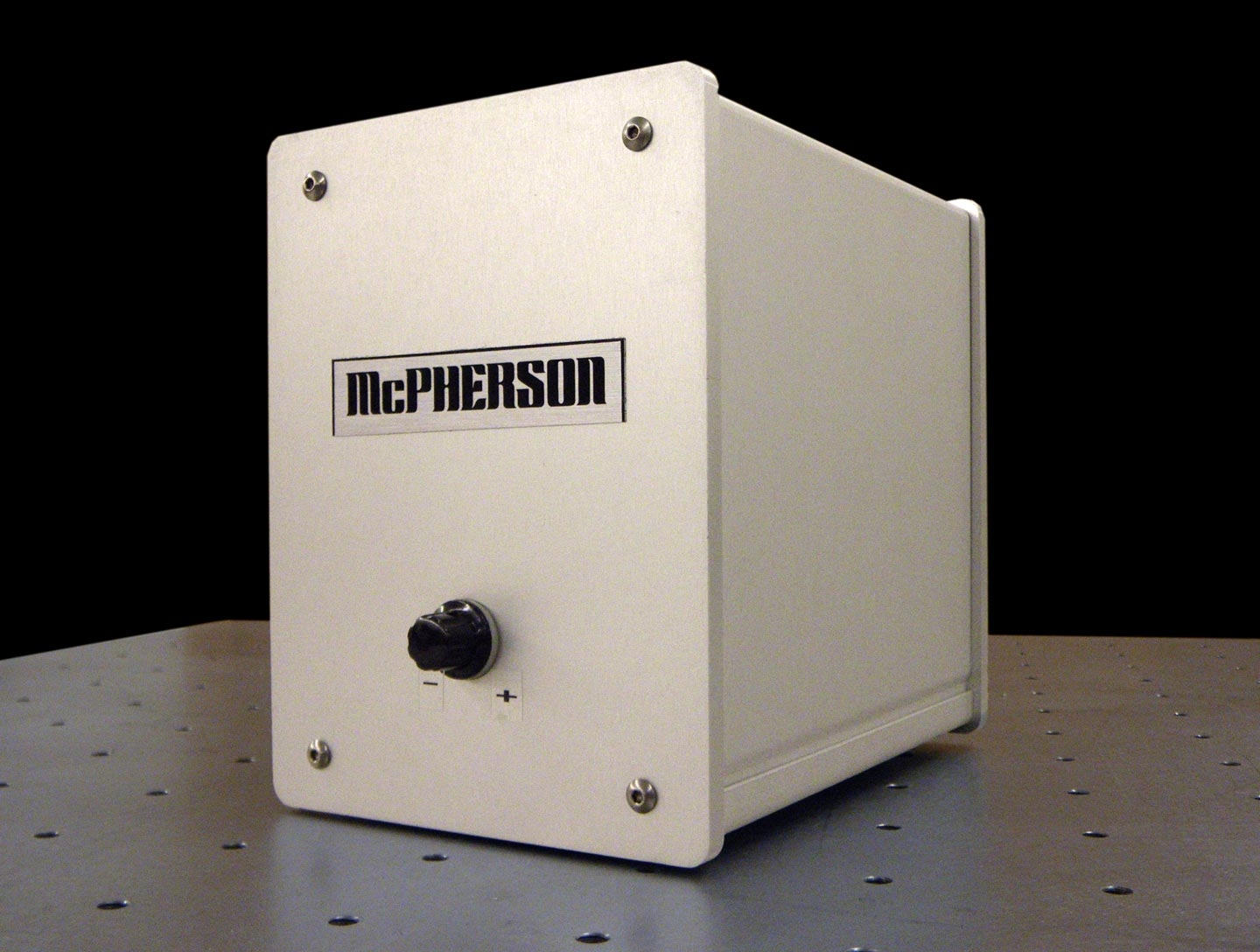

The Model 610 650 W tungsten halogen light source for spectrometers delivers continuum output in the 350 to 2500 nm range.

The Model 610 650 W tungsten halogen light source for spectrometers delivers continuum output in the 350 to 2500 nm range. It is based on quartz tungsten-halogen with coil filament and integral reflective focusing. A mirror-condenser is used and source output is free from chromatic aberration and focused to illuminate small areas.
McPherson
Chelmsford, MA

[email protected]

More Products

-----

PRESS RELEASE

650 Watt Visible-NIR Light Source
High power source covers full Visible-NIR spectrum

McPherson is pleased to introduce a high power 650-Watt tungsten-halogen light source that delivers Visible and near Infrared continuum output in the 350 to 2500nm spectral range. The new Model 610 light source system includes a powerful 650-Watt quartz tungsten-halogen light source with coil filament and integral reflective focusing. A mirror-condenser is used and source output is free from chromatic aberration and focused in order to best illuminate small areas. Compact, forced air cooled housing has approximately f/5 output designed to fit directly to McPherson spectrometer slit assemblies. The built in power supply has potentiometer control to allow variation of output intensity and operation at reduced output light levels or to extend the lamp life.

The McPherson Model 610 650-Watt tungsten halogen light source is useful for VIS-NIR spectroscopy and for optical or experimental systems requiring high light levels.

McPherson (Chelmsford, MA USA) manufactures a wide variety of instruments that measure wavelengths of light, and has served international and domestic customers in university and research laboratories for more than fifty years.

-----
