In Depth Look at Anti-Reflection Coatings

May 31, 2016
Edmund Optics offers all TECHSPEC® transmissive optics with a variety of anti-reflection (AR) coating options that vastly improve the efficiency of the optic by increasing transmission, enhancing contrast, and eliminating ghost images.

Coating Theory | Coating Specifications

Edmund Optics offers all TECHSPEC® transmissive optics with a variety of anti-reflection (AR) coating options that vastly improve the efficiency of the optic by increasing transmission, enhancing contrast, and eliminating ghost images. Most AR coatings are also very durable, with resistance to both physical and environmental damage. For these reasons, the vast majority of transmissive optics include some form of anti-reflection coating. When specifying an AR coating to suit your specific application, you must first be fully aware of the full spectral range of your system. While an AR coating can significantly improve the performance of an optical system, using the coating at wavelengths outside the design wavelength range could potentially decrease the performance of the system.

COATING THEORY

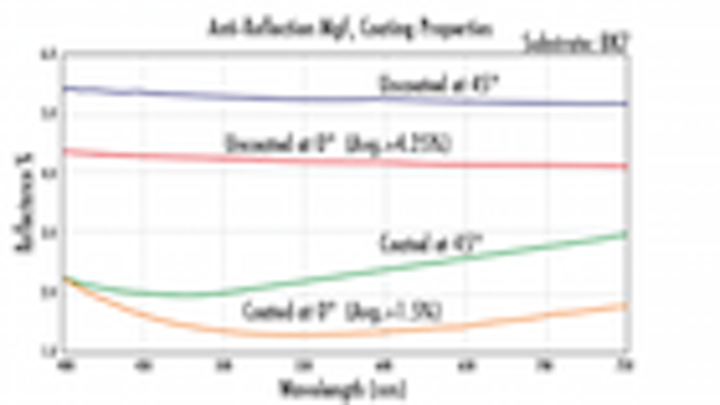

Figure 1: MgF2 Anti-Reflection Coating Performance

Why Choose an Anti-Reflection Coating?

As light passes through an uncoated glass substrate, approximately 4% will be reflected at each interface. This results in a total transmission of only 92% of the incident light. Applying an AR coating on each surface will increase the throughput of the system and reduce hazards caused by reflections traveling backwards through the system (ghost images). Anti-reflection coatings are especially important if the system contains many transmitting optical elements. Also, many low-light systems incorporate AR coated optics to allow for efficient use of light. Figure 1 demonstrates the difference between an uncoated and coated single surface BK7 substrate. The coating used is a λ/4 of MgF2 centered at 550nm.

Figure 2: Illustration of Light Interacting with Thin Film

How Does an Anti-Reflection Coating Work?

The transmission properties of a coating are dependent upon the wavelength of light being used, the substrate's index of refraction, the index of refraction of the coating, the thickness of the coating, and the angle of the incident light.

The coating is designed so that the relative phase shift between the beam reflected at the upper and lower boundary of the thin film is 180°. Destructive interference between the two reflected beams occurs, cancelling both beams before they exit the surface. The optical thickness of the coating must be an odd number of quarter wavelengths (λ/4, where λ is the design wavelength or wavelength being optimized for peak performance), in order to achieve the desired path difference of one half wavelength between the reflected beams, which leads to their cancellation.

The equation for determining the index of refraction of the thin film needed for complete cancellation of the two beams is:

nf is the index of refraction of the thin film
n0 is the index of refraction of air (or the incident material)
ns is the index of refraction of the substrate

COATING SPECIFICATIONS

Anti-Reflection Coating Options

Edmund Optics offers all TECHSPEC® lenses with an optional single-layer, dielectric anti-reflection (AR) coating to reduce surface reflections. In addition, custom single-layer, multi-layer, V, and 2V coatings are available for both our off-the-shelf and large volume custom orders. View Custom Optical Lens Coatings for information.

Figure 3: Wavelength Selection Chart

λ/4 MgF2: The simplest AR coating used is λ/4 MgF2 centered at 550nm (with an index of refraction of 1.38 at 550nm). MgF2 coating is ideal for broadband use though it gives varied results depending upon the glass type involved.

VIS 0° and VIS 45°: VIS 0° (for 0° angle of incidence) and VIS 45° (for 45° angle of incidence) provide optimized transmission for 425 – 675nm, reducing average reflection to 0.4% and 0.75% respectively. VIS 0° AR coating is preferred over MgF2 for visible applications.

VIS-NIR: Our visible/near-infrared broadband anti-reflection coating is specially optimized to yield maximum transmission (>99%) in the near infrared.

Telecom-NIR: Our telecom/near-infrared is a specialized broadband AR coatings for popular telecommunications wavelengths from 1200 – 1600nm.

UV-AR and UV-VIS: Ultraviolet coatings are applied to our UV fused silica lenses and UV fused silica windows to increase their coating performance in the ultraviolet region.

NIR I and NIR II: Our near-infrared I and near-infrared II broadband AR coatings offer exceptional performance in near-infrared wavelengths of common fiber optics, laser diode modules and LED lights.

SWIR: Our Short-Wave Infrared (SWIR) broadband anti-reflection coating is designed for maximum transmission of wavelengths from 900 – 1700nm for common SWIR applications including electronics or solar cell inspection, surveillance, or anti-counterfeiting.

Standard Broadband Anti-Reflection Coating Information*

Name

Wavelength Range

Reflection Specifications

Typical Energy Density Limit

MgF2(View Curve)

λ/4 @ 550nm

Ravg ≤ 1.75% 400 - 700nm (N-BK7)

10 J/cm2 @ 532nm, 10ns

UV-AR (View Curve)

250 - 425nm

Rabs ≤ 1.0% 250 - 425nm

3 J/cm2 @ 355nm, 10ns

Ravg ≤ 0.75% 250 - 425nm

Ravg ≤ 0.5% 370 - 420nm

UV-VIS (View Curve)

250 - 700nm

Rabs ≤ 1.0% 350 - 450nm

3 J/cm2 @ 355nm, 10ns

Ravg ≤ 1.5% 250 - 700nm

5 J/cm2 @ 532nm, 10ns

VIS-EXT (View Curve)

350 - 700nm

Ravg < 0.5% 350 - 700nm

VIS-NIR (View Curve)

400 - 1000nm

Rabs ≤ 0.25% 880nm

5 J/cm2 @ 532nm, 10ns

Ravg ≤ 1.25% 400 - 870nm

Ravg ≤ 1.25% 890 - 1000nm

VIS 0° (View Curve)

425 - 675nm

Ravg ≤ 0.4% 425 - 675nm

5 J/cm2 @ 532nm, 10ns

VIS 45°
Reference VIS 0° Curve

425 - 675nm

Ravg ≤ 0.75% 425 - 675nm

5 J/cm2 @ 532nm, 10ns

YAG-BBAR (View Curve)

500 - 1100nm

Rabs < 0.25% 532nm

Rabs < 0.25% 1064nm

Ravg < 1.0% 500 - 1100nm

NIR I (View Curve)

600 - 1050nm

Ravg ≤ 0.5% 600 - 1050nm

7 J/cm2 @ 1064nm, 10ns

NIR II (View Curve)

750 - 1550nm

Rabs ≤ 1.5% 750 - 800nm

8 J/cm2 @ 1064nm, 10ns

Rabs ≤ 1.0% 800 - 1550nm

Ravg ≤ 0.7% 750 - 1550nm

Telecom-NIR
(View Curve)

1200 - 1600nm

Rabs ≤ 0.25% 1295 - 1325nm

Rabs ≤ 0.25% 1535 - 1565nm

Ravg ≤ 0.25% 1200 - 1600nm

SWIR (View Curve)

900 - 1700nm

Rabs ≤ 1.5% 900 - 1700nm

Ravg ≤ 1.0% 900 - 1700nm

*Note: Ravg = Average Reflectance, Rabs = Absolute Reflectance.
