Laser system from Santec features up to 100 ports

April 30, 2013

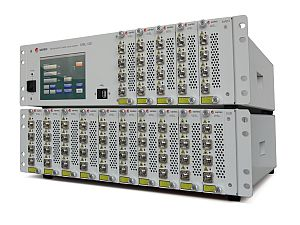

The MSL-100 multiport wavelength-selectable laser system is designed for DWDM transmission system and component testing.

The MSL-100 multiport wavelength-selectable laser system is designed for DWDM transmission system and component testing. With up to 100 ports, each port is configured from a choice of 196 ITU 25 GHz-spaced channels. An internal wavelength locker ensures wavelength accuracy and stability with 1 MHz fine-tuning resolution. C-band and L-band versions are available.
Santec
Komaki, Japan

www.santec.com/en/5841

More Products

-----

PRESS RELEASE

Multi-Port Wavelength Selectable Laser System, MSL-100

Product Name : Multi-Port Wavelength Selectable Laser System Module code : MSL-100

Santec, a leading design and manufacturer of tunable lasers, optical instruments, and fiber-optic components, introduces a new Multi-Port Wavelength Selectable Laser System, MSL-100, designed for Dense Wavelength Division Multiplexing (DWDM) transmission system and component testing. With up to 100 ports, each port configured from a choice of 196 ITU 25GHz-spaced channels, the MSL-100 is a valuable tool for evaluating channel management in next generation optical networks. The system comprises a mainframe that can support up to 20 tunable lasers (ports), and expansion frames that can each add up to 40 extra ports. Power and channel selection are fully programmable, and an internal wavelength locker ensures high wavelength accuracy and stability. C-band and L-band versions are available.

The laser system is controlled either through a USB interface or via the front panel touchscreen; making the MSL-100 suitable for applications in research and development as well as in automated measurement systems, such as those used in production lines.

Features
- C-band or L-band tuning with high resolution
- 25 or 50GHz ITU-T grid tuning
- Fine tuning available with 1MHz resolution
- Narrow linewidth
- High output power >+15dBm
- Integrated wavelength locker
- Low Relative Intensity Noise (RIN)
- Touchscreen or USB control interfaces

Applications
- Fiber optic transmission testing
- DWDM component testing
- Coherent communications / Local oscillator
- Optical amplifier testing

For more information please contact Santec at: [email protected].

* *Santec Corporation was established in 1979. It is headquartered in Komaki, Japan and has subsidiaries in NJ, USA (Santec U.S.A. Corporation), Oxford, UK (Santec Europe Ltd.) and China (Santec (Shanghai) Co., Ltd.). It is listed on the JASDAQ Market -- a section of the Osaka Securities Exchange. The company serves customers in more than 30 countries; these include most of the world’s major telecommunications companies, telecommunication system manufacturers and medical equipment companies.

Santec’s products include a broad range of optical components and tunable laser light sources for the optical fiber communication industry, together with a range of fiber optic test and measurement instruments.

-----
