Smart visual monitoring system from Scanlab has utility in laser processing applications

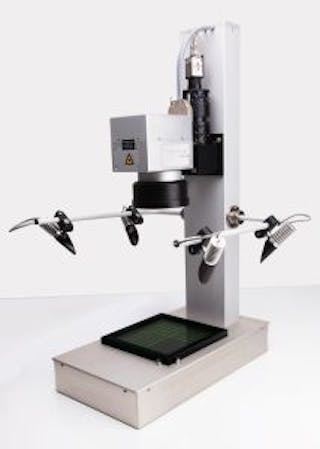

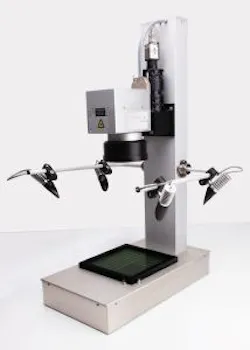

The SCANalign intelligent monitoring and calibration system has use in laser processing applications that require strict dimensional tolerances.

Content Dam Lfw Online Articles 2016 06 1607lfw Pro 6 Web

The SCANalign intelligent monitoring and calibration system has use in laser processing applications that require strict dimensional tolerances. Its high-precision calibration plate achieves absolute calibration of laser coordinates for dimensionally accurate laser processing, with obtainable precisions that can be smaller than the process laser's spot size. For applications with a 255 mm focal length and 1064 nm laser wavelength, absolute precisions under 10 µm can typically be achieved.
Scanlab
Puchheim, Germany

www.scanlab.de
