Ingeneric collimation module has 200 lens elements

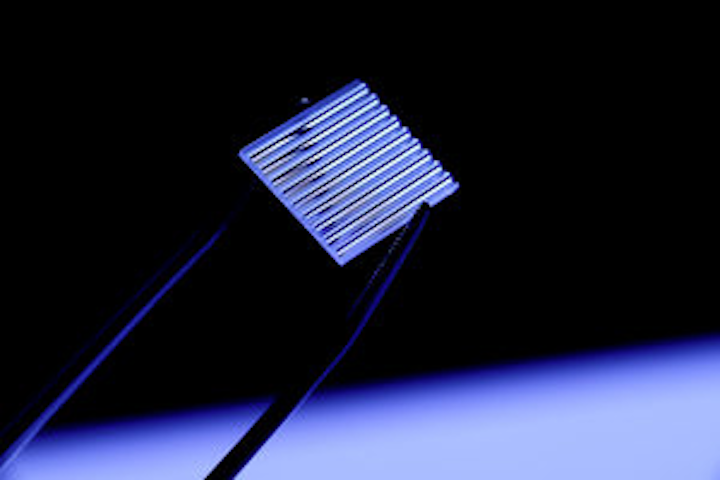

The C-SMDB micro-optics module is a monolithic cylindrical lens array is made through precision glass molding.

Laser Focus World Editors
Apr 5th, 2018
Content Dam Lfw Online Articles 2018 04 Rsz 1802lfw Pro 1

The C-SMDB micro-optics module collimates single-mode diode bars. Its monolithic cylindrical lens array is made through precision glass molding. It has a design wavelength of 970 nm. The effective focal length is 600 μm for the fast-axis collimation and 190 μm for the slow-axis collimation. There are 200 lens elements on each part.

Ingeneric

Aachen, Germany

www.ingeneric.com
