Plasmonic antennas create femtosecond pulses in the terahertz gap

Pulses of femtosecond length from a pump laser creat on-chip pulses in the terahertz frequency range.

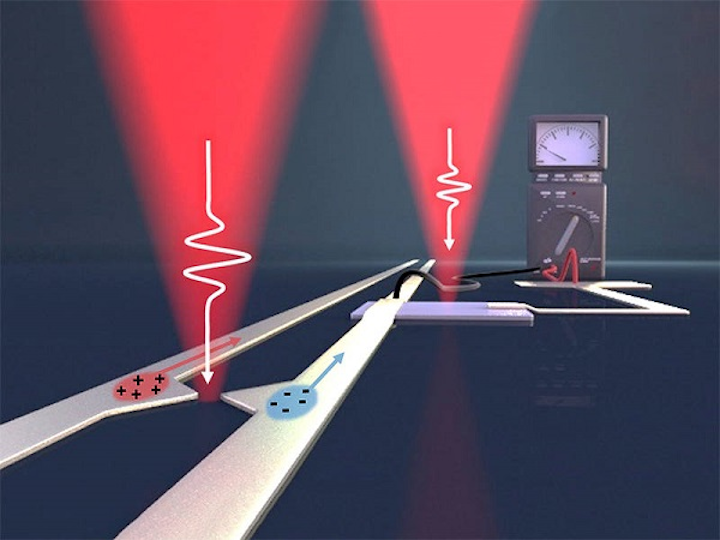

Pulses of femtosecond length from the pump laser (left) generate on-chip electric pulses in the terahertz frequency range. With the right laser, the information is read out again. (Image credit: Christoph Hohmann/NIM, Holleitner/TUM)
Pulses of femtosecond length from the pump laser (left) generate on-chip electric pulses in the terahertz frequency range. With the right laser, the information is read out again. (Image credit: Christoph Hohmann/NIM, Holleitner/TUM)

IMAGE: Pulses of femtosecond length from the pump laser (left) generate on-chip electric pulses in the terahertz frequency range. With the right laser, the information is read out again. (Image credit: Christoph Hohmann/NIM, Holleitner/TUM)

A team headed by Technical University of Munich (TUM; Munich, Germany) physicists Alexander Holleitner and Reinhard Kienberger has succeeded for the first time in generating ultrashort electrical pulses on a chip using metal antennas only a few nanometers in size, then running the signals a few millimeters above the surface and reading them again in a controlled manner. The technology enables the development of new, powerful terahertz components and is detailed in Nature Communications.

RELATED ARTICLE: Optical antennas concentrate light and direct beams

Classical electronics allows frequencies up to around 100 GHz. Optoelectronics uses electromagnetic phenomena starting at 10 THz. This range in between is referred to as the terahertz gap, since components for signal generation, conversion, and detection have been extremely difficult to implement.

The TUM physicists Alexander Holleitner and Reinhard Kienberger succeeded in generating electric pulses in the frequency range up to 10 THz using tiny, so-called plasmonic antennas that amplify the light intensity at the metal surfaces.

The shape of the antennas is important. They are asymmetrical: One side of the nanometer-sized metal structures is more pointed than the other. When a lens-focused laser pulse excites the antennas, they emit more electrons on their pointed side than on the opposite flat ones. An electric current flows between the contacts--but only as long as the antennas are excited with the laser light.

"In photoemission, the light pulse causes electrons to be emitted from the metal into the vacuum," explains Christoph Karnetzky, lead author of the Nature work. "All the lighting effects are stronger on the sharp side, including the photoemission that we use to generate a small amount of current."

The light pulses lasted only a few femtoseconds. Correspondingly short were the electrical pulses in the antennas. Technically, the structure is particularly interesting because the nano-antennas can be integrated into terahertz circuits a mere several millimeters across. In this way, a femtosecond laser pulse with a frequency of 200 THz could generate an ultrashort terahertz signal with a frequency of up to 10 THz in the circuits on the chip, according to Karnetzky.

The researchers used sapphire as the chip material because it cannot be stimulated optically and, thus, causes no interference. With an eye on future applications, they used 1500 nm lasers deployed in traditional communications fiber-optic cables.

Holleitner and his colleagues made yet another amazing discovery: Both the electrical and the terahertz pulses were non-linearly dependent on the excitation power of the laser used. This indicates that the photoemission in the antennas is triggered by the absorption of multiple photons per light pulse.

"Such fast, nonlinear on-chip pulses did not exist hitherto," says Holleitner. Using this effect he hopes to discover even faster tunnel emission effects in the antennas and to use them for chip applications.

SOURCE: TUM; https://www.tum.de/nc/en/about-tum/news/press-releases/detail/article/34767/
