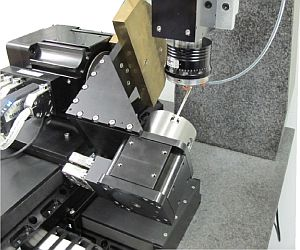

Cutting system from Miyachi Unitek has five axes

The Sigma five-axis fiber laser cutting system enables three-dimensional cut paths. The two-axis rotary assembly, mounted to an X-Y stage, is designed for thin metals with unique cut paths, nonsymmetrical features, beveled edges, off-axis cutting, compound
angles, and internal cut radii of less than 50 µm.
Miyachi Unitek
Monrovia, CA
[email protected]

More Products

-----

PRESS RELEASE

Miyachi Unitek Announces 5 Axis Fiber Laser Cutting System
Maximizes part accessibility for high speed, precision fiber laser cutting of thin metals

MONROVIA, CA – Miyachi Unitek Corporation, a leading manufacturer of welding equipment and laser systems, announces the availability of its Sigma 5 Axis Fiber Laser Cutting System, a unique technology that enables three dimensional cut paths. The Sigma 5 Axis Laser Cutting System features high speed, high precision, position-based firing laser power control, and unique cutting features that make it ideal for use in cutting thin metals, especially those used in precision medical cutting tools.

The flexible system configuration of a two axis rotary assembly, mounted to an XY stage, maximizes laser on-part accessibility, system simplicity, and tooling path efficiency for high speed, high precision laser cutting of thin metals. It is ideal for thin metals with unique cut paths, non-symmetrical features, beveled edges, off axes cutting, compound angles, and internal cut radii of less than 50 microns.

Linear motors and high torque direct drive rotary axes on the Sigma 5 Axis Laser Cutting System have been optimally configured to provide the best performance for speed and quality, while maintaining part dimensional accuracy. The LF series fiber lasers handles focus spot sizes down to 20 microns, and offers high pulse frequency, excellent power and pulse stability, fine control of pulse width, and laser power levels up to 500W, which enables a wide variety of metal and thickness to be cut to high dimensional accuracy. The unique position-based firing control method accommodates multi-linear and rotary axis motion to control the laser pulse frequency for consistent pulse overlap according to the position of the laser spot on the part.

About Miyachi Unitek
Miyachi Unitek is a leading manufacturer of equipment and systems for resistance welding, laser welding, laser marking, laser cutting, and hot bar reflow soldering and bonding. The company provides products to a wide range of markets, including the medical device, battery, electric vehicle, and solar industries, as well as the global electronics, automotive, and general industrial markets. Miyachi Unitek is an ISO9001 certified company. Contact Miyachi Unitek at its company headquarters, located at 1820 S Myrtle Ave., Monrovia, CA 91016, by phone at (626) 303-5676, or by email at [email protected]. Find out more about the company’s products and services at www.miyachiunitek.com.

-----
