Lasers & Sources

Laser treatment helps to better bond carbon fiber to aluminum for lightweight cars

May 19, 2016

The resulting joints can absorb 200% more energy than conventional joints.

Laser treatment helps to better bond carbon fiber to aluminum for lightweight cars

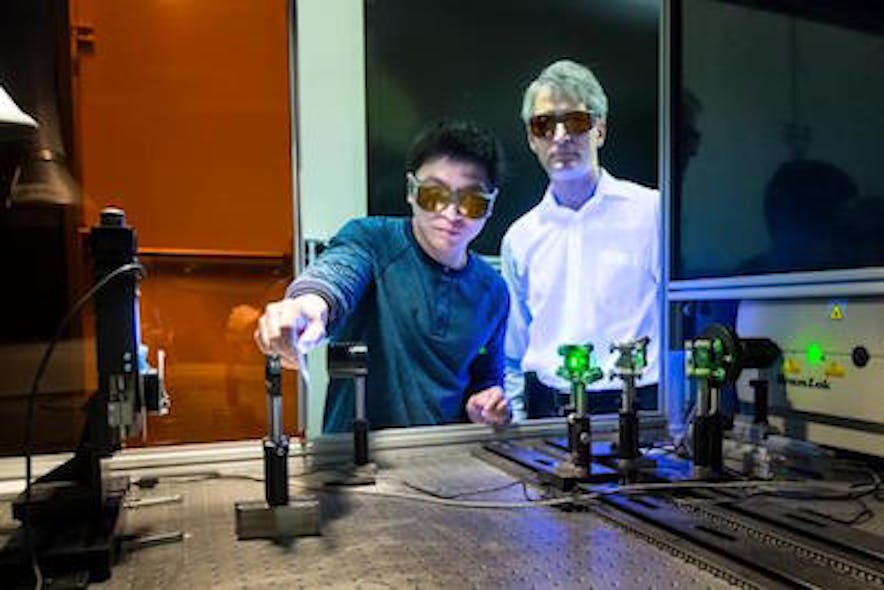

Adrian Sabau and Jian Chen work with a laser to prepare the surface of carbon fiber composites and aluminum for bonding. (Image: ORNL)

A laser surface-treatment process developed at Oak Ridge National Laboratory (ORNL; Oak Ridge, TN) for joining carbon fiber composites and aluminum for lightweight cars and other multimaterial high-end products can potentially replace the practice of preparing the surface of the materials by hand using abrasive pads, grit blasting, and environmentally harmful solvents. The result would be lower cost and higher robustness, because using a laser to remove layers of material from surfaces prior to bonding improves the performance of the joints and provides a path toward automation for high-volume use. "Our technique is vastly superior to the conventional surface preparation methods," says ORNL researcher and team leader Adrian Sabau. "Combined with the potentially dramatic reduction in the cost of carbon fiber polymer composites, this represents an important step toward increasing the use of this lightweight high-strength material in automobiles, which could reduce the weight of cars and trucks by 750 pounds."

(Video: ORNL) The surface treatment of aluminum and carbon fiber polymer composite is a critical step in the adhesive joining process, which directly affects the quality of bonded joints. Aluminum surfaces typically contain oils and other contaminants from production rolling operations while carbon fiber surfaces often contain mold releases. "These surface contaminants affect surface energies and the quality of adhesion, so it is critical that they are removed," says Sabau, adding that the laser also penetrates into the top resin layer, leaving individual carbon fibers exposed for direct bonding to the adhesive and increasing the surface area for better adhesion. Test results support Sabau's optimism, as single-lap shear-joint specimens showed strength, maximum load, and displacement at maximum load increased by 15%, 16%, and 100%, respectively, over those measured for the baseline joints. Also, joints made with laser-structured surfaces can absorb approximately 200% more energy than the conventionally prepared baseline joints, the researchers say. Sabau notes that the process also doubles the energy absorption in the joints, which has implications for crash safety and potential use in armor for people and vehicles. Tim Skszek of Magna International (Troy, MI), a project partner, shares Sabau's enthusiasm. "The results are most encouraging, enabling the automated processing of a multi-material carbon fiber-aluminum joint," Skszek says. "With this work, we were able to focus on addressing the gaps in technology and commercial use, and we look forward to applying these findings to products." Sabau will present the team's findings at The Society for the Advancement of Materials and Process Engineering conference May 23-26 in Long Beach, CA (http://www.sampelongbeach.org). Source: https://www.ornl.gov/news/laser-treatment-bonding-potential-road-success-carbon-fiber
