Frontiers in Optics 2012: Researchers use natural silk in biosensors, lasers, photonic chips

Oct. 16, 2012
New research shows that natural silk could be an eco-friendly alternative to more traditional ways of manipulating light, such as through glass or plastic fiber-optic cables.

New research shows that natural silk could be an eco-friendly alternative to more traditional ways of manipulating light, such as through glass or plastic fiber-optic cables. Two teams independently exploring possible applications for the material’s photonic talents have presented their work at Frontiers in Optics (FiO) 2012, currently taking place in Rochester, NY.

Biomedical engineer Fiorenzo Omenetto of Tufts University (Boston, MA) discussed his group’s work fabricating concoctions of proteins that make use of silk’s optical properties for implantable sensors and other biology-technology interfaces.

Physicist Nolwenn Huby at the CNRS Institut de Physiques de Rennes in France talked about her team's use of natural spider silk to guide light through photonic chips—technology that could give birth to silk-based biosensors and medical imaging devices for use inside the body.

Both groups hope their work will lead to medical advancements that take advantage of the optical properties of silk. One of the strongest fibers in nature, silk is biocompatible, biodegradable, and extremely hardy. Produced naturally by spiders and silkworms, it is a renewable resource. Added to these benefits is the more recent discovery that silk is a gifted manipulator of light, which can travel through silk almost as easily as it flows through glass fibers.

Though it may not be the best material in every one of these categories, the combination of talents is what makes silk such an attractive material to study, Omenetto explains. "There are materials that can do one of each, or a few of each," he says, "but seldom all of each."

In their efforts to exploit silk’s optical merits, Omenetto’s team is developing silk-based materials that look like plastic, but retain the optical properties of pristine silk. One of the advantages of these materials is that they can degrade and be reabsorbed by the body. A sensor or tag made of silk protein could be implanted—at the site of a fractured bone, for example, to monitor healing—and merely left to dissolve. Once its purpose had been served, the silk tag would harmlessly fade away.

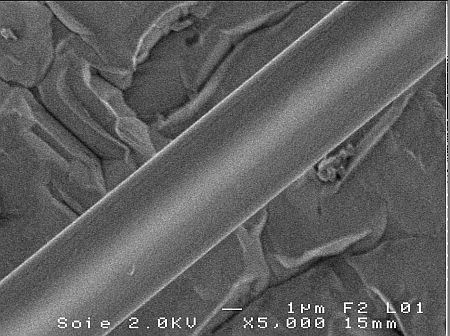

Close-up view of a silk fiber taken with a scanning electron microscope. (Image courtesy of Nolwenn Huby)

Omenetto is currently investigating a range of questions, from fundamental to commercial, and they go beyond implantable optics. His team recently won an INSPIRE grant from the National Science Foundation to create electronic components that are compostable. He has developed and tested a blue laser made from silk fiber-doped materials that is not only biodegradable but also uses less power to induce lasing than the acrylic materials that are commonly used. He is also exploring the possibilities of using silk to integrate a technological component with living tissue. "We’re thinking of how to scale up [production], how to interface with current technology," Omenetto says. He hopes some of the more "gadget-like" fruits of his labor will be commercially available within the next five to 10 years.

Silk-doped composites are the subject of Omenetto's talk at FiO, but the optical merits of pristine silk will be the subject of Huby’s. Her team is experimenting with pure spider silk as a relatively inexpensive and ecologically friendly way to manipulate light within photonic chips.

As a light guide, silk works in a way comparable to the more commonly used glass microfibers that carry light within a chip; but silk comes out of the spider ready to use, whereas glass microfibers have to be heated to high levels and carefully sculpted at great expense. Huby's silk is collected by a group of molecular spectroscopy experts led by Michel Pézolet of Université Laval in Quebec, then integrated into circuits at her team's lab at Rennes. To her knowledge, this is the first time the optical properties of pristine silk have been exploited.

A pristine silk fiber integrated into a photonic chip. The fiber connects three disks that can hold light. During the experiment, light is injected into one of the disks and propagates along the silk to the other two. (Image courtesy of Nolwenn Huby)

By integrating real spider silk into a microchip, the researchers found that silk could not only propagate light, but could also direct light to selected parts of the chip. Huby hopes this work can be used to create biosensors that could detect the presence of a molecule or the activity of a protein: as light waves passed through a blood sample, for example, the molecules would change the properties of the light wave in an observable way.

The next step for Huby’s team, she says, is to see what biologists and medical professionals need and then create devices they can use. Besides making biosensors, spider silk could also provide a light source for taking pictures inside of the body. Natural silk is only five microns in diameter, less than a tenth the width of a human hair. A pristine fiber of spider silk, which is so thin and strong, could carry light into the body through a very small opening, providing less invasive ways to do internal imaging or even chemical diagnoses using spectroscopy, which is the analysis of matter based on its interaction with light.
