Transparent skull implant could enable laser-based treatments with improved aim

A team of University of California, Riverside researchers have developed a transparent skull implant that literally provides a "window to the brain," which they hope will eventually open new treatment options for patients with life-threatening neurological disorders, such as brain cancer and traumatic brain injury.

Related: LED therapy boosts cognitive function following brain injury

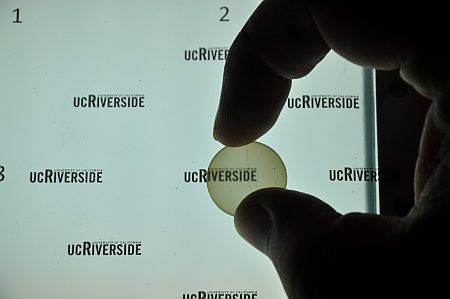

The team’s implant is made of yttria-stabilized zirconia (YSZ)—the same ceramic material currently used in hip implants and dental crowns. But their material has been processed in a unique way to make it transparent. Since YSZ has already proven itself to be well tolerated by the body in other applications, the team’s advancement now allows use of YSZ as a permanent window through which doctors can aim laser-based treatments for the brain without having to perform repeated craniectomies, which involve removing a portion of the skull to access the brain.

The work also dovetails with President Obama’s Brain Research through Advancing Innovative Neurotechnologies (BRAIN) Initiative, which aims to revolutionize the understanding of the human mind and uncover new ways to treat, prevent, and cure brain disorders. The team envisions potential for their YSZ windows to facilitate the clinical translation of promising brain imaging and neuromodulation technologies being developed under this initiative.

Related: Proposed BRAIN initiative could benefit biophotonics

Laser-based treatments have shown significant promise for many brain disorders. However, realization of this promise has been constrained by the need for performing a craniectomy to access the brain since most medical lasers are unable to penetrate the skull. The transparent YSZ implants developed by the UC Riverside team address this issue by providing a permanently implanted view port through the skull.

“This is a crucial first step towards an innovative new concept that would provide a clinically viable means for optically accessing the brain, on-demand, over large areas, and on a chronically recurring basis, without need for repeated craniectomies,” says team member Dr. Devin Binder, a clinician and an associate professor of biomedical sciences at UC Riverside.

Although the team’s YSZ windows are not the first transparent skull implants to be reported, they are the first that could be conceivably used in humans, which is a crucial distinction. This is due to the inherent toughness of YSZ, which makes it far more resistant to shock and impact than the glass-based implants previously demonstrated by others. This not only enhances safety, but it may also reduce patient self-consciousness, since the reduced vulnerability of the implant could minimize the need for conspicuous protective headgear.

Members of the research team: Javier Garay, Yasuhiro Kodera, Carissa L. Reynolds, Yasaman Damestani, Guillermo Aguilar, Masaru P. Rao, and B. Hyle Park.

Guillermo Aguilar, a professor of mechanical engineering at UC Riverside’s Bourns College of Engineering (BCOE), led the 10-person research team comprised of faculty, graduate students, and researchers from BCOE and the School of Medicine. Full details of the work appear in the journal Nanomedicine: Nanotechnology, Biology and Medicine; for more information, please visit http://www.nanomedjournal.com/article/S1549-9634%2813%2900361-4/abstract.

-----
