X-ray laser captures snapshots of important biological processes 1000X faster

May 6, 2016
A powerful x-ray laser took snapshots of ultrafast biological reactions in a bacterial light sensor.

Important biological processes such as vision depend on light, but it is hard to capture responses of biomolecules to light because they happen almost instantaneously. Recognizing this, researchers at the Department of Energy's SLAC National Accelerator Laboratory (Menlo Park, CA) and collaborators used their Linac Coherent Light Source (LCLS) x-ray laser to take snapshots of these ultrafast reactions in a bacterial light sensor. Doing so, they were able to see atomic motions as fast as 100 quadrillionths of a second—1000 times faster than ever before, they claim.

Related: X-ray laser harnesses crystal imperfections to allow for better biomolecule study

The technique could widely benefit studies of light-driven, ultrafast atomic motions, as it could reveal how visual pigments in the human eye respond to light, and how absorbing too much of it damages them. It could also show how photosynthetic organisms turn light into chemical energy—a process that could serve as a model for the development of new energy technologies, and how atomic structures respond to light pulses of different shape and duration—an important first step toward controlling chemical reactions with light.

"The new data show for the first time how the bacterial sensor reacts immediately after it absorbs light," says Andy Aquila, a researcher at SLAC's LCLS, a DOE Office of Science User Facility. "The initial response, which is almost instantaneous, is absolutely crucial because it creates a ripple effect in the protein, setting the stage for its biological function. Only LCLS's x-ray pulses are bright enough and short enough to capture biological processes on this ultrafast timescale."

The team looked at the light-sensitive part of a protein called photoactive yellow protein (PYP). It functions as an "eye" in purple bacteria, helping them sense blue light and stay away from light that is too energetic and potentially harmful.

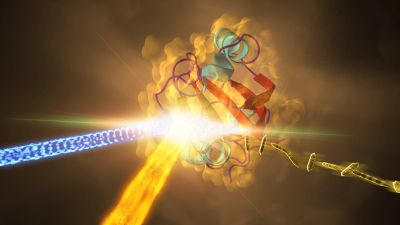

This illustration depicts an experiment at SLAC that revealed how a protein from photosynthetic bacteria changes shape in response to light in less than a trillionth of a second. Samples of the crystallized protein (right), called photoactive yellow protein (PYP), were struck by an optical laser beam (blue light coming from left) that triggers shape changes in the protein. These were then probed with a powerful x-ray laser beam (fiery beam from bottom left) from SLAC's LCLS. (Image courtesy of the SLAC National Accelerator Laboratory)

The researchers had already studied light-induced structural changes in PYP at LCLS, revealing atomic motions as fast as 10 billionths of a second. By tweaking their experiment, they were now able to improve their speed limit 100,000 times and capture reactions in the protein that are 1000 times faster than any seen in an x-ray experiment before, the researchers say.

Both studies followed a very similar approach: At LCLS, the team sent a stream of tiny PYP crystals into a sample chamber. There, each crystal was struck by a flash of optical laser light and then an x-ray pulse, which took an image of the protein's structural response to the light. By varying the time between the two pulses, the scientists were able to see how the protein morphed over time.

Since LCLS's x-ray pulses are extremely short, lasting only a few quadrillionths of a second, they can in principle probe processes on that very timescale—but only if the optical laser also matches the tremendous speed. For the new experiment, the team replaced the old optical laser with a new one whose pulses were 100 quadrillionths of a second long—100,000 times shorter than before and much closer to the x-ray pulse length.

The researchers also applied better timing tools to measure the relative arrival time between the optical and x-ray laser pulses, enhancing the ability to precisely track ultrafast events.

Full details of the work appear in the journal Science; for more information, please visit http://dx.doi.org/10.1126/science.aad5081.
