Six-axis hexapod positioner by PI allows iPad control

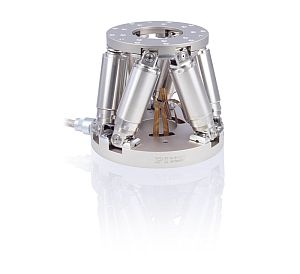

The M-811.STV vacuum-compatible hexapod six-axis positioner from Physik Instrumente (PI; Auburn, MA) can handle loads up to 5 kg and achieve velocities up to 10 mm/sec. It provides travel ranges up to 35 mm in the x-y plane and up to 13 mm in the z-direction. Large tilting angles of 20° around the x and y axes and up to 40° around the vertical axis enable complex motion profiles with flexible load placement. Positioning resolution reaches 40 nm, and multi-axis motion can be accomplished with sub-micron repeatability. A software command—including from an iPad—allows selection of the center of rotation (pivot point) freely anywhere inside or outside the system envelope.

More Biophotonics Products

-----

PRESS RELEASE

M-811 Vacuum-Compatible Miniature Hexapod 6-Axis Positioner

High Precision and Very Versatile

* Vacuum-Compatible Miniature Hexapod
* Complete with Specialized Hexapod Controller and Software
* Travel Ranges 34 x 32 x 13 mm, Rotation to 42 Degrees
* Load Capacity to 5 kg
* Actuator Resolution 40 nm
* Min. Incremental Motion to 200 nm
* Repeatability up to ±0.2 µm
* Velocity to 10 mm/s

Application Examples

* Biotechnology
* Semiconductor technology
* Micromachining
* Micromanipulation
* X-ray diffraction measurements
* Tool control

The M-811.STV is PI's smallest standard vacuum-compatible Hexapod. Despite its size it can handle loads up to 5 kg (2.5 kg in any orientation) and achieves velocities up to 10 mm/sec. With a diameter of only 130 mm and a height of 115 mm it provides travel ranges up to 35 mm in the XY-plane and up to 13 mm in the Z-direction. In combination with the large tilting angles of 20° around the X and Y axis and up to 40° around the vertical axis it allows for complex motion profiles with particularly flexible placement of the load – a great advantage in restricted areas (such as beam lines) and small vacuum chambers.

Each individual strut has a positioning resolution of 40 nm; multi-axis motion can be accomplished with sub-micron repeatability. In addition to controlling all axes in Cartesian coordinates, a software command allows the user to select the center of rotation (pivot point) freely anywhere inside or outside the system envelope.

Hexapod vs. Serial Kinematics Systems
The Hexapod is driven by six high-resolution actuators all connected directly to the same moving platform. This design provides a high system stiffness and a large clear aperture. Because of the low mass of the moving platform, positioning operations can be performed with far lower settling times than with conventional, stacked multi-axis systems. In such systems, runout, guiding errors, and the friction and inertia of moving cables all accumulate to limit accuracy and repeatability—problems which do not affect parallel kinematic systems like the Hexapod.

Fixed Virtual Pivot Point
For optics and other alignment tasks, it is important to be able to define a fixed pivot point. The sophisticated Hexapod controller allows choosing any point in space as the pivot point for the rotation axes by software command. The pivot point remains fixed relative to the platform. Target positions in 6-space are entered in user-friendly coordinates and reached by smooth vectorized motion.

Open Architecture
Control of the Hexapod is facilitated by the controller's open interface architecture, which provides a variety of high-level commands and includes a macro language for programming and storing command sequences.

-----
