Near-infrared quantum dot dye stores vaccination history under the skin

Jan. 24, 2020
The method stores vaccination data in a pattern of near-infrared dye, which is delivered under the skin at the same time as the vaccine.

Recognizing that developing nations have very little infrastructure for storing medical records (particularly with regard to vaccination history), a team of researchers at the Massachusetts Institute of Technology (MIT; Cambridge, MA) has developed a way to store such data in a pattern of near-infrared (near-IR) dye, invisible to the naked eye, that is delivered under the skin at the same time as the vaccine.

“In areas where paper vaccination cards are often lost or do not exist at all, and electronic databases are unheard of, this technology could enable the rapid and anonymous detection of patient vaccination history to ensure that every child is vaccinated,” says Kevin McHugh, a former MIT postdoc who is now an assistant professor of bioengineering at Rice University (Houston, TX).

McHugh and former visiting scientist Lihong Jing are the lead authors of the paper that describes the work. Ana Jaklenec, a research scientist at MIT’s Koch Institute for Integrative Cancer Research, and Robert Langer, the David H. Koch Institute Professor at MIT, are the senior authors of the paper.

The researchers showed that their dye, which consists of nanocrystals called quantum dots, can remain for at least five years under the skin, where it emits near-IR light that can be detected by a specially equipped smartphone.

Several years ago, the research team set out to devise a method for recording vaccination information in a way that doesn’t require a centralized database or other infrastructure. Many vaccines, such as the vaccine for measles, mumps, and rubella (MMR), require multiple doses spaced out at certain intervals; without accurate records, children may not receive all of the necessary doses.

To create an “on-patient,” decentralized medical record, the researchers developed copper-based quantum dots, which emit light in the near-IR spectrum. The dots are only about 4 nm in diameter, but they are encapsulated in biocompatible microparticles that form spheres about 20 microns in diameter. This encapsulation allows the dye to remain in place, under the skin, after being injected.

The researchers designed their dye to be delivered by a microneedle patch rather than a traditional syringe and needle. Such patches are now being developed to deliver vaccines for measles, rubella, and other diseases, and the researchers showed that their dye could be easily incorporated into these patches.

The microneedles used in this study are made from a mixture of dissolvable sugar and a polymer called PVA, as well as the quantum-dot dye and the vaccine. When the patch is applied to the skin, the microneedles, which are 1.5 mm long, partially dissolve, releasing their payload within about two minutes.

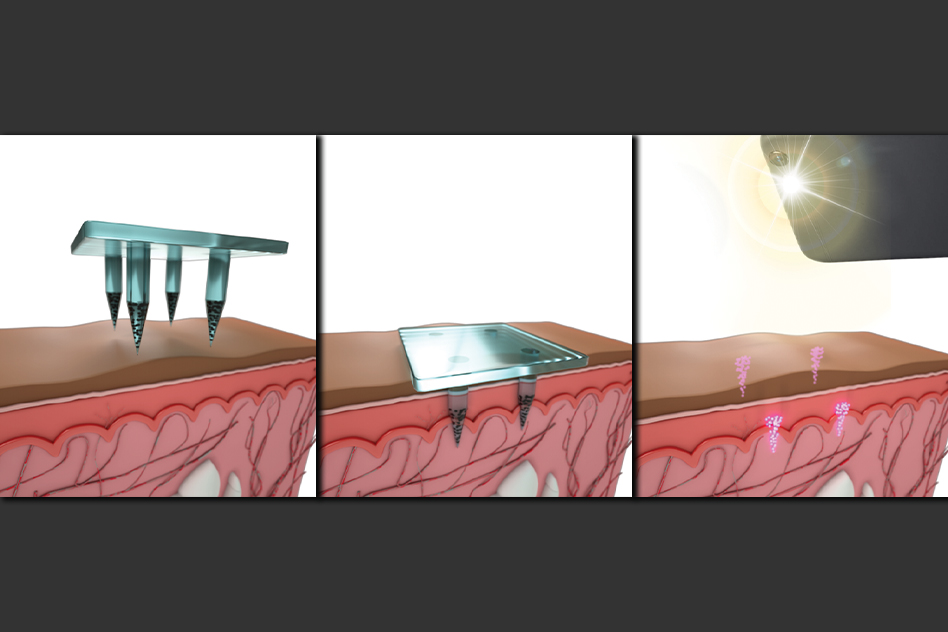

By selectively loading microparticles into microneedles, the patches deliver a pattern in the skin that is invisible to the naked eye, but can be scanned with a smartphone that has the IR filter removed. The patch can be customized to imprint different patterns that correspond to the type of vaccine delivered.

Tests using human cadaver skin showed that the quantum-dot patterns could be detected by smartphone cameras after up to five years of simulated sun exposure.

The researchers also tested this vaccination strategy in rats, using microneedle patches that delivered the quantum dots along with a polio vaccine. They found that those rats generated an immune response similar to the response of rats that received a traditional injected polio vaccine. The study confirmed that incorporating the vaccine with the dye in the microneedle patches did not affect the efficacy of the vaccine or the research team's ability to detect the dye, Jaklenec says.

The researchers now plan to survey health care workers in developing nations in Africa to get input on the best way to implement this type of vaccination record-keeping. They are also working on expanding the amount of data that can be encoded in a single pattern, allowing them to include information such as the date of vaccine administration and the lot number of the vaccine batch.

The researchers believe the quantum dots are safe to use in this way because they are encapsulated in a biocompatible polymer, but they plan to do further safety studies before testing them in patients.

Full details of the work appear in the journal Science Translational Medicine

Source: MIT News press release  December 18, 2019
