Microscopy method clarifies interplay between bone cells in bone remodeling

Feb. 9, 2018

The multicenter study clarified how bone cells physically interact with each other in bone remodeling.

Content Dam Bow Online Articles 2018 02 20180119 Fig 1web

To accomplish their functions, bones undergo continuous destruction (resorption) carried out by osteoclasts and formation by osteoblasts. In the adult skeleton, the two processes must be in balance to maintain a constant, controlled amount of bone. An imbalance in the regulation can result in metabolic bone diseases, such as osteoporosis. Therefore, it is important to understand the spatiotemporal relationship and interaction between osteoblasts and terminally differentiated osteocytes (bone cells) and osteoclasts in vivo. However, it remains controversial whether these cell types physically interact with each other in bone remodeling, so a team of researchers at Osaka University in Japan conducted a multicenter study to clarify this interaction.

"Using an intravital two-photon microscopy technique we developed, we investigated the communication between mature osteoblasts (mOBs) and mature osteoclasts (mOCs) in vivo," study first author Masayuki Furuya explains. "mOBs and mOCs were visualized simultaneously in living skull bone tissues from transgenic mice that express enhanced cyan fluorescent protein (ECFP) driven mOBs and a red fluorescing protein controlled by mOCs."

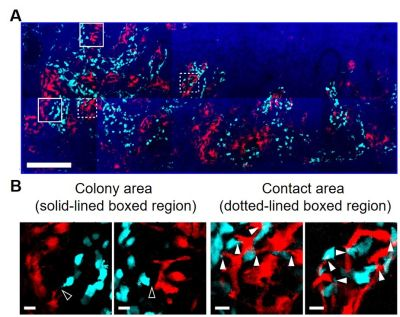

Simultaneous visualization of mOBs and mOCs in living bones using intravital two-photon microscopy, where (a) shows a tiling image of skull bone tissues (cyan, mOBs; red, mOCs; and blue, bone tissues; scale bar = 300 μm) and (b) shows magnified images of colony region (left panels) and contact area (right panels; open arrowheads, separated mOBs and mOCs; filled arrowheads, direct mOB-mOC contact, and scale bar = 20 μm). (Courtesy of Osaka University)

Intravital two-photon bone imaging is superior compared to conventional analyses of the shape and form of a tissue, as it enables two-dimensional scanning in bone in a focal plane to observe cell shapes and the appearance of mOBs and mOCs in the body. Through this visualization method, the researchers successfully captured images of osteoblasts and osteoclasts interacting in real-time in living bone tissue. Next, the number and duration of mOB-mOC contact was analyzed using three-dimensional colocalization. mOBs and mOCs were found to mainly occupy discrete territories in the bone marrow in the steady state, although direct cell-to-cell contact exist in a spatiotemporally limited fashion.

Additionally, using a pH-sensing fluorescence probe, the team found that mOCs secrete protons (subatomic particles with a positive electrical charge) for bone resorption when they are not in contact with mOBs, whereas mOCs contacting mOBs are non-resorptive, suggesting that mOBs can inhibit bone resorption by direct contact.

Direct contact with mOBs inhibits the bone-resorbing activity of mOCs, where (a) shows images of bone-resorptive activity in skull bone tissues using a pH-sensing chemical probe (green, pH probe; cyan, mOBs; red, mOCs; yellow, contact areas; filled arrowheads, areas of mOB-mOC contact; open arrowheads, separated mOBs and mOCs). The actual values of bone-resorbing index (BRI) are shown to the right of the images. (b) shows the assessment of BRI of mOCs in contact, or not, with mOBs. (Courtesy of Osaka University)

"Although the molecular mechanisms involved in direct cell contact remain elusive, our study clearly demonstrates an important concept that dynamic communication between mOBs and mOCs regulates bone homeostasis," corresponding author Masaru Ishii says. "Our results have potential to lead to development of a new line of therapy for modifying the association properties of these two cell types, especially in osteoporosis and tumor metastasis in bones."

Full details of the work appear in the journal Nature Communications.
