3D superresolution imaging helps reveal Alzheimer's disease progression

July 17, 2018
The imaging technique could help reveal how Alzheimer's disease progresses and where new treatments could intervene.

Knowing that a hurdle to understanding Alzheimer's disease is not being able to clearly see why the disease starts, researchers at Purdue University (West Lafayette, IN) have developed a superresolution nanoscope that provides a 3D view of brain molecules with 10X greater detail. This imaging technique could help reveal how the disease progresses and where new treatments could intervene.

Related: Spectroscopy indicates biomarkers for Alzheimer's disease

The nanoscope helped Indiana University (Bloomington, IN) researchers better understand the structure of plaques that form in the brain of Alzheimer's patients, pinpointing the characteristics that are possibly responsible for damage.

Long before Alzheimer's develops in an individual, amyloid plaques accumulate in the brain. These clusters interact with surrounding cells, causing inflammation that destroys neurons and creates memory problems. The deposition of these plaques is currently the earliest detectable evidence of pathological change leading to Alzheimer's disease.

The limited resolution in conventional light microscopes and the natural thickness of brain tissue have prevented researchers from clearly observing 3D morphology of amyloid plaques and their interactions with other cells. "Brain tissue is particularly challenging for single molecule superresolution imaging because it is highly packed with extracellular and intracellular constituents, which distort and scatter light—our source of molecular information," says Fang Huang, Purdue assistant professor of biomedical engineering. "You can image deep into the tissue, but the image is blurry."

To tackle the challenge of brain tissue, Huang's research team developed new techniques that adjust the adaptive optics (deformable mirrors that change shape to compensate for light distortion) in response to sample depths to compensate for aberration introduced by the tissue. At the same time, these techniques intentionally introduce extra aberration to maintain the position information carried by a single molecule.

The nanoscope reconstructs the whole tissue, its cells, and cell constituents at a resolution 6–10X higher than conventional microscopes, allowing a clear view through 30-µm-thick brain sections of a mouse's frontal cortex. The researchers used mice that were genetically engineered to develop the characteristic plaques that typify Alzheimer's disease.

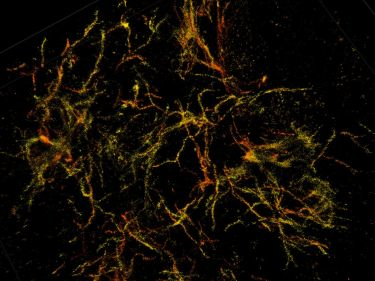

Gary Landreth, professor of anatomy and cell biology at the Indiana University School of Medicine's Stark Neurosciences Research Institute, and his lab found through these 3D reconstructions that amyloid plaques are like hairballs, entangling surrounding tissue via their small fibers that branch off waxy deposits. "We can see now that this is where the damage to the brain occurs. The mouse gives us validation that we can apply this imaging technique to human tissue," he says.

The collaboration has already begun work on using the nanoscope to observe amyloid plaques in samples of human brains, as well as a closer look at how the plaques interact with other cells and get remodeled over time.

"This development is particularly important for us as it had been quite challenging to achieve high-resolution in tissues. We hope this technique will help further our understanding of other disease-related questions, such as those for Parkinson's disease, multiple sclerosis, and other neurological diseases," Huang says.

Full details of the work appear in the journal Nature Methods.
