Fluorescence sensor monitors oxygen level changes with high sensitivity

Aug. 31, 2018
The fluorescence sensor provides real-time information on dynamic changes in oxygen levels.

Scientists at Tokyo Institute of Technology in Japan have developed a fluorescence sensor based on a protein from Escherichia coli (E. coli) bacteria that provides real-time information on dynamic changes in oxygen levels with very high sensitivity. As the oxygen level is a major determinant of cellular function, the idea behind this sensor may revolutionize our ability to detect cellular changes of critical importance, such as in tumors and following stroke and heart attack.

Oxygen levels in cancer cells can affect their response to anti-cancer therapies, while oxygen levels in tissues following a stroke or heart attack can influence treatment and recovery. Jiro Nomata and Toru Hisabori, researchers at Tokyo Institute of Technology, developed the oxygen sensor that may dramatically alter our ability to detect changes in cellular oxygen levels. "Limitations in previously developed methods to measure oxygen levels make it difficult to analyze oxygen levels in living cells," Hisabori notes, "so we aimed to overcome these limitations by developing a genetically encoded sensor that can provide real-time information on the dynamic changes of oxygen levels in living cells."

The researchers used a protein called the direct oxygen sensor protein (DosP) from the bacterium E. coli, which has the ability to either bind or release oxygen depending on the oxygen levels inside the cell. The part of the protein that can bind oxygen was isolated and linked to a fluorescent protein, before evaluating the fluorescence intensity of the resulting product under different oxygen levels. The researchers found that the fluorescence of their anaerobic/aerobic sensing fluorescence protein (dubbed ANA sensor) increased in the presence of oxygen and decreased in the absence of oxygen, thereby tracking the dynamic changes in oxygen content.

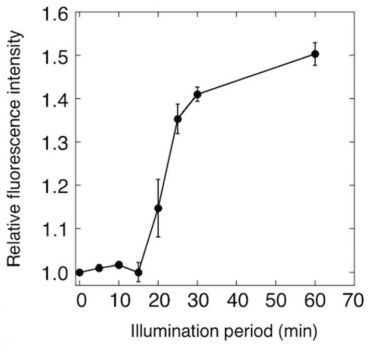

An ANA sensor was added to the culture of cyanobacteria, and the fluorescence of the ANA sensor was monitored; fluorescence of the ANA sensor started to increase after 15 min. of illumination, indicating that the ANA sensor detected oxygen produced by cyanobacteria. (Image credit: Toru Hisabori)

Further development allowed them to fine-tune the protein to enable more accurate quantification of oxygen levels. By using the ANA sensor, photosynthetic oxygen production by a photosynthetic microorganism (cyanobacteria) could be monitored. Notably, in a dramatic improvement over previous oxygen detection methods, changes in oxygen levels are reflected by changes in ANA sensor fluorescence with very high sensitivity.

The potential exists to apply this method to the development of other protein sensor probes to detect a number of cellular changes at the molecular level. "Almost all current sensor protein probes are based on conformational changes," Nomata notes. "In contrast, the fluorescence quenching mechanism used in this study expands the possibilities for the development of novel protein sensor probes."

Full details of the work appear in the journal Scientific Reports.
