Two-photon microscopy shows how immune cells attack lymphoma cells

April 1, 2019
Using a microscopy technique, the researchers were able to see individual CAR T cells killing lymphoma cells in bone marrow.

Thanks to a microscopy method, a team of researchers at the Pasteur Institute (Paris, France) and the French National Institute of Health and Medical Research (INSERM; also in Paris) has revealed that chimeric antigen receptor (CAR) T cells can induce tumor regression by directly targeting and killing cancer cells, uncovering new details of how these immune cells work and how their effectiveness could be improved in the treatment of non-Hodgkin's lymphoma and other B cell cancers.

CAR T cells are genetically engineered immune cells that can be custom-made to attack a patient's tumor cells. For example, CAR T cells that target a protein called CD19, which is found on many lymphoma and leukemia cells, are an FDA-approved treatment for several B cell malignancies, including non-Hodgkin's lymphoma and acute lymphoblastic leukemia.

However, some patients fail to respond to anti-CD19 CAR T cells, while others, after an initial improvement, suffer a relapse and develop therapy-resistant tumors that no longer express CD19. Philippe Bousso and colleagues at the Pasteur Institute believe that the key to improving treatment is to learn more about how CAR T cells work. For instance, it had remained unclear if CAR T cells kill the cancer cells themselves or whether they induce other immune cells to attack the tumor.

For the study, the researchers tracked the activity of anti-CD19 CAR T cells injected into mice with B cell lymphoma. Using a microscopy technique known asintravital two-photon microscopy, Bousso and colleagues were able to see individual CAR T cells killing lymphoma cells in the animals' bone marrow. Some CAR T cells appeared to be more active than others, but in most cases, lymphoma cells died within minutes of coming into direct contact with a CAR T cell. This suggested that CAR T cells mainly kill their targets directly.

"Computer simulations based on our experimental data supported the idea that CAR T cells rely on their direct cytotoxic activity rather than on the recruitment and activation of other cells to eliminate the bulk of the B cell lymphoma in the bone marrow," Bousso says.

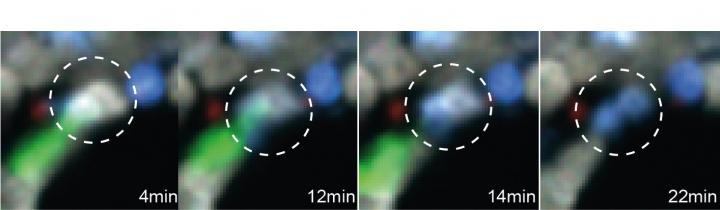

Intravital two-photon microscopy of the bone marrow of a mouse with B cell lymphoma shows a CAR T cell (green) come into contact with a live tumor cell (gray) and quickly killing it (causing it to turn blue). (Image credit: Cazaux et al., 2019)

The simulations also suggested that relatively small differences in the infiltration of CAR T cells into the bone marrow can substantially impact the treatment's outcome. One reason why CAR T cells may fail to infiltrate the bone marrow is if they encounter lymphoma cells, or healthy B cells that also express CD19, circulating in the blood. The researchers found that CAR T cells can aggregate with these circulating cells and become trapped in the lungs, preventing them from reaching the bone marrow. Reducing these encounters—for example, by temporarily reducing the number of circulating B cells—enhanced the ability of CAR T cells to infiltrate the bone marrow and kill tumor cells, prolonging the survival of mice with B cell lymphoma.

"Purging both circulating tumor and normal B cells prior to CAR T cell transfer may therefore offer a clinical benefit by improving CAR T cell engraftment and persistence," Bousso says.

Still, the researchers found that tumor relapse and the emergence of tumors lacking CD19 occur in the bone marrow, rather than in other organs affected by B cell lymphoma, such as the lymph nodes. This appears to be because CAR T cells are not as active in these other organs, reducing the incentive for tumor cells to lose the CD19 protein.

"In sum, our results reveal the large diversity in CAR T cell behaviors in distinct anatomical sites impacting engraftment, anti-tumor activity, and tumor relapse," Bousso says. "Understanding these differences is an important step towards developing strategies to optimize CAR T cell-based treatments."

Full details of the work appear in the Journal of Experimental Medicine.
