Fluorescence method reveals, in real time, how medical nanoparticles biodegrade

May 2, 2014
Recognizing that demonstrating the properly timed disintegration of nanoparticles is essential for their performance and their ability to be safely cleared out of a patient's body when used as a drug delivery method or diagnostic tool, researchers have turned to a fluorescence method to directly measure nanoparticle degradation in real time within biological environments.

Recognizing that demonstrating the properly timed disintegration of nanoparticles is essential for their performance and their ability to be safely cleared out of a patient's body when used as a drug delivery method or diagnostic tool, researchers at the Children's Hospital of Philadelphia (CHOP) in Pennsylvania have turned to a fluorescence method to directly measure nanoparticle degradation in real time within biological environments.

Related: Fluorescence imaging enables efficient study of inhaled nanoparticles

The CHOP team has long investigated biodegradable nanoparticles for medical applications. With diameters ranging from a few tens to a few hundreds of nanometers, these particles are 10 to 1000 times smaller than red blood cells. One major challenge is to continuously monitor the fate of nanoparticles in model biological settings and in living cells without disrupting cell functions.

"Accurately measuring nanoparticle disassembly in real time directly in media of interest, such as the interior of a living cell or other types of complex biological milieu, is challenging. Our goal here was to develop such a noninvasive method providing unbiased results," says cardiology researcher Michael Chorny, Ph.D., of CHOP. "These results will help researchers to customize nanoparticle formulations for specific therapeutic and diagnostic applications."

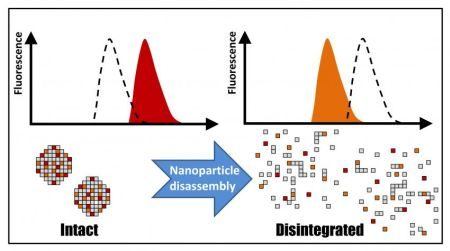

The research team used a physical phenomenon called Förster resonance energy transfer (FRET) to measure the distance between the components of their particles. They labeled their formulations with fluorescent probes exhibiting the radiationless transfer of energy (FRET) when located within the same particle. This process results in a special pattern of fluorescence--a "fingerprint" of physically intact particles--which gradually disappears as particle disassembly proceeds. This change in the nanoparticle fluorescent properties can be monitored directly without separating the particles from their environment, allowing for undistorted, continuous measurements of their integrity.


"The molecules must be very close together, just several nanometers apart, for the energy transfer to take place," says Chorny. "The changes in the fluorescence patterns sensitively reflect the kinetics of nanoparticle disassembly. Based on these results, we can improve the particle design in order to make them safer and more effective."

The rate of disassembly is highly relevant to specific potential applications. For instance, some nanoparticles might carry a drug intended for quick action, while others should keep the drug protected and released in a controlled fashion over time. Tailoring formulation properties for these tasks may require carefully adjusting the time frame of the nanoparticle disassembly. This is where this technique can become a valuable tool, greatly facilitating the optimization process.

In their study, the scientists analyzed how nanoparticles disintegrated both in liquid and semi-liquid media, and in vascular cells simulating the fate of particles used to deliver therapy to injured blood vessels. "We found that disassembly is likely to occur more rapidly early in the vessel healing process and slow down later. This may have implications for the design of nanoparticles intended for targeted drug, gene, or cell therapy of vascular disease," says Chorny.

Chorny and colleagues have long studied using nanoparticles formulated as carriers delivering antiproliferative drugs and biotherapeutics to blood vessels subject to dangerous restenosis (re-blockage). Many of these studies, in the Cardiology Research laboratory of CHOP co-author Robert J. Levy, M.D., use external magnetic fields to guide iron oxide-impregnated nanoparticles to metallic arterial stents, narrow scaffolds implanted within blood vessels.

The current research, says Chorny, while immediately relevant to restenosis therapy and magnetically guided delivery, has much broader potential applications. "Nanoparticles could be formulated with contrast agents for diagnostic imaging, or could deliver anticancer drugs to a tumor," he said. "Our measuring tool can help researchers to develop and optimize their nanomedicine formulations for a range of medical uses."

Full details of the work appear in the Proceedings of the National Academy of Sciences (PNAS); for more information, please visit http://doi.org/10.1073/pnas.1324104111.

-----
