Orange OPSLs by Coherent

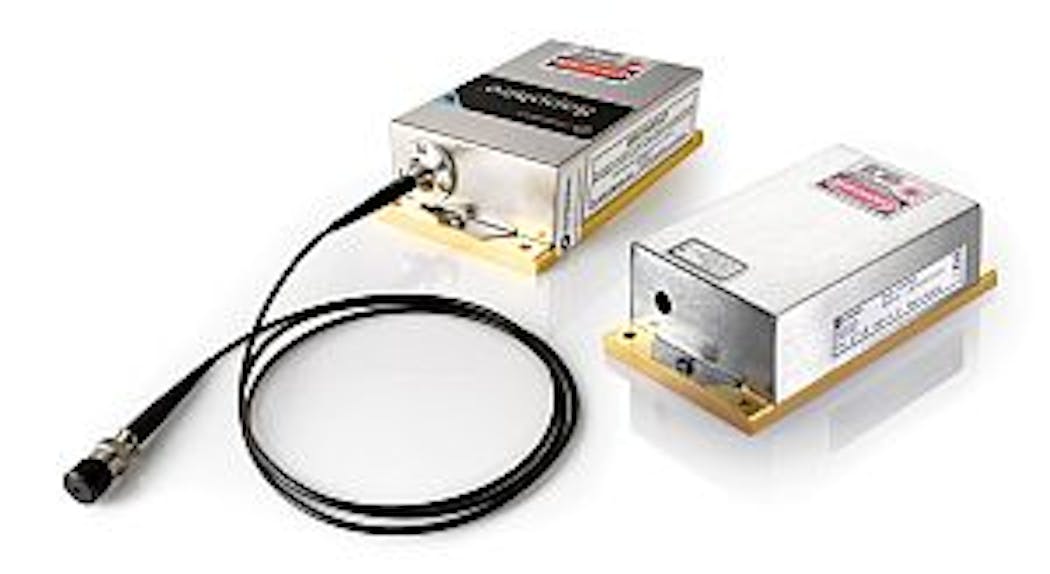

Sapphire 594 nm lasers from Coherent (Santa Clara, CA) are based on the company's optically pumped semiconductor laser (OPSL) technology, and their orange output excites red and mFruit fluorophores (mCherry, mPlum) in fluorescence applications. The lasers are available with either free-space (Sapphire 594 LP) or fiber-pigtailed (Sapphire 594 FP) output, and are offered with output powers of 20, 50, or 75 mW. They feature power stability (< 2% over 2 hrs) and low noise (0.25% RMS from 20 Hz to 2 MHz). Free space models deliver a collimated, TEM₀₀ beam with M² <1.1, low beam divergence (<1.3 mrad), and high pointing stability <5 µrad/°C.

-----

PRESS RELEASE

Coherent Launches OPSLs at 594 nm for Life Sciences

Santa Clara, Calif. – A new series of Sapphire™ lasers from Coherent, Inc. (Santa Clara, CA) (Nasdaq: COHR) at 594 nm are ideal for fluorescence-based applications in life sciences. Formerly, this wavelength was only available from inefficient, low-power HeNe lasers, or from diode-pumped solid state (DPSS) lasers utilizing complex frequency-mixing schemes. Based on Coherent’s unique optically pumped semiconductor laser (OPSL) technology, these new Sapphire™ 594 lasers offer superior performance, reliability, efficiency and value compared to these older technologies. Measuring just 125 mm x 70 mm x 34 mm, they provide identical form, fit, and function compatibility (optical, mechanical, electrical, and interfacing) with all other Sapphire LP and FP models, independent of wavelength and power class. This simplifies integration, including wavelength addition and substitution, for OEMs and end users alike. And as with other Sapphire lasers, the new 594 nm models are equipped with USB, RS-232 and analog interface ports for ease of installation and operation.

These new lasers are available with either free-space (Sapphire 594 LP) or fiber-pigtailed (Sapphire 594 FP) output and are offered with output powers of 20 mW, 50 mW, or 75 mW respectively 40 mW ex fiber. They feature excellent power stability (< 2% over 2 hours), and low noise (0.25% RMS from 20 Hz to 2 MHz). Free space models deliver a collimated, TEM₀₀ beam with M² <1.1, low beam divergence (<1.3 mrad) and high pointing stability < 5 µrad/°C.

The orange output of these new Sapphire 594 lasers is an optimum wavelength for exciting a broad range of established red fluorescence fluorophores (e.g., Texas Red, Alexa Fluor 594) as well as new fluorophores such as the mFruit dyes (e.g., mCherry, mPlum).

Founded in 1966, Coherent, Inc. is a world leader in providing photonics based solutions to the commercial and scientific research markets, and is part of the Standard & Poor’s SmallCap 600 Index and the Russell 2000. Please direct any questions about this press release to Volker Pfeufer, product line manager, at +49 (0)451 3000 379. For more information about Coherent, including product and financial updates, visit our website at http://www.Coherent.com.

-----
