Two-photon microscopy method can image individual neurons in marmoset brains

Nov. 26, 2015
A newly developed two-photon microscopy method can image the activity of individual neurons in the marmoset brain.

Researchers at the RIKEN Brain Science Institute (Wako City, Japan) have developed a two-photon microscopy method for imaging the activity of individual neurons in the marmoset brain. The study shows how amplifying genetically encoded fluorescent signals with TET-inducible gene expression allows hundreds of individual neurons in the primate brain to be imaged simultaneously over a period of several months.

Related: 'Transparentizing' method enables quick whole-brain imaging at single-cell resolution

Scientists who want to study neural activity related to complicated cognitive and social behaviors have had limited success using two-photon microscopy in primate brains. As part of Japan’s new Brain Mapping by Innovative Neurotechnologies for Disease Studies (Brain/MINDS) initiative, the researchers—led by Tetsuo Yamamori and Masanori Matsuzaki—used the marmoset to overcome past limitations.

“Simply adopting the same technique used in mice did not work at all because the fluorescent signal was too weak,” explains lead author Osamu Sadakane. “But, by improving the viral technique, we amplified the signal and succeeded in observing a large group of neurons in the marmoset neocortex.”

Two-photon microscopy is a technique used to image living cells by exciting fluorescent compounds—called fluorophores—with lasers that emit infrared (IR) light. When fluorophores are hit by two photons simultaneously, they emit a fluorescent signal. Because neurons use calcium when they transmit signals, neuronal activity can be visualized by genetically attaching fluorophores to calcium indicators—molecules that bind to calcium. Until now, using these genetically encoded calcium indicators (GECIs) has been successful in small animals such as mice, but has been limited in primates because weak expression levels produced fluorescent signals that were too faint to be seen.

The team succeeded in marmosets by modifying how GCaMP6f—their GECI of choice—was produced in marmoset neurons. Adeno-associated virus (AAV) is often used as a viral vector for introducing transgenes experimentally or for gene therapy. However, rather than simply introducing it into marmoset neurons using a single AAV, the team used two AAVs, amplifying transgene expression and tying it to the presence/absence of the compound doxycycline, which could be added or removed from the monkeys’ drinking water. This allowed the team to express GCaMP6f in very high quantities, which dramatically boosted the fluorescence level and allowed easy visualization that was not possible without their innovation.

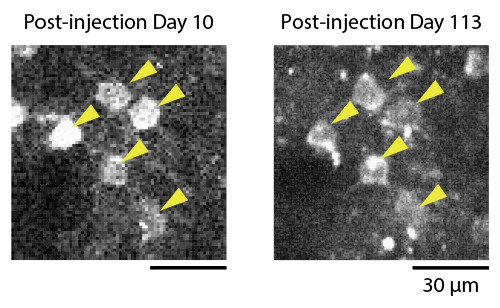

Representative images of GCaMP6f fluorescent signals. Neurons indicated by yellow arrowheads were assumed to be the same between post-injection day 10 and post-injection day 113. Image depth was 200 μm from the cortical surface.

Normally, extended expression of AAV transgenes can damage neurons, making long-term imaging studies difficult. By removing doxycycline from the monkeys’ drinking water, the team was able to pause GCaMP6f expression for over a month and prevent neuron damage. They were then able to revisualize the same exact neurons after reintroducing doxycycline into the monkeys’ drinking water.

The new method also allowed visualization at the subcellular level—with activity being detected in axons and individual dendrites—and in cortical layers up to 400 µm from the surface of the brain. This allowed individuals neurons to be imaged in 3D, which is critical for investigating the organization of cortical circuits.

“The next step is to improve the technique so it can be used with awake, behaving marmosets,” says team leader Tetsuo Yamamori. “Then we will be able to relate neural activity to behavior, and see changes in individual neurons that occur through experience.

Full details of the work appear in the journal Cell Reports; for more information, please visit
