AAA battery powers Columbia Engineering's on-chip frequency comb generator

This Kerr frequency comb generator integrates the laser together with the microresonator, shrinking the design.

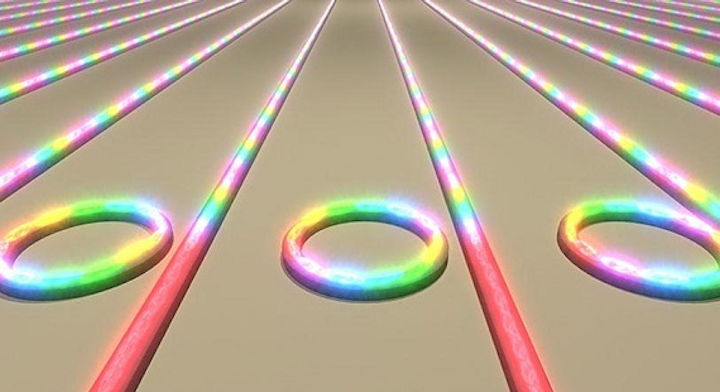

An illustration shows an array of microring resonators on a chip converting laser light into frequency combs. (Image credit: Columbia Engineering)
An illustration shows an array of microring resonators on a chip converting laser light into frequency combs. (Image credit: Columbia Engineering)

IMAGE: An illustration shows an array of microring resonators on a chip converting laser light into frequency combs. (Image credit: Columbia Engineering)

In the past 10 years, major advances have been made in the use of monolithic, chip-based microresonators to produce frequency combs. While the microresonators generating the combs are tiny--smaller than a human hair--they have always relied on external lasers that are often much larger, expensive, and power-hungry. Described in a Nature research article, researchers at Columbia Engineering (New York, NY) have now built aKerr frequency comb generator that they say, for the first time, integrates the laser together with the microresonator, significantly shrinking the system’s size and power requirements.

They designed the laser so that half of the laser cavity is based on a semiconductor waveguide section with high optical gain, while the other half is based on waveguides made of silicon nitride, a very low-loss material. Their results showed that they no longer need to connect separate devices in the lab using fiber--they can now integrate it all on photonic chips that are compact and energy efficient.

The team knew that the lower the optical loss in the silicon nitride waveguides, the lower the laser power needed to generate a frequency comb. "Figuring out how to eliminate most of the loss in silicon nitride took years of work from many students in our group," says Michal Lipson, Eugene Higgins Professor of Electrical Engineering, professor of applied physics, and co-leader of the team. "Last year we demonstrated that we could reproducibly achieve very transparent low-loss waveguides. This work was key to reducing the power needed to generate a frequency comb on-chip, which we show in this new paper."

The Columbia Engineering team made another key innovation: in microresonators with extremely low loss like theirs, light circulates and builds up so much intensity that they could see a strong reflection coming back from the ring. "We actually placed the microresonator directly at the edge of the laser cavity so that this reflection made the ring act just like one of the laser's mirrors--the reflection helped to keep the laser perfectly aligned," says Brian Stern, the study's lead author who conducted the work as a doctoral student in Lipson's group. "So, rather than using a standard external laser to pump the frequency comb in a separate microresonator, we now have the freedom to design the laser so that we can make the laser and resonator interact in new ways."

The entire device fits in a millimeter-scale area and the researchers say that it is so efficient that even a common AAA battery can power it. These comb generators could be used for ultraprecise optical clocks, for laser radar/lidar in autonomous cars, or for spectroscopy to sense biological or environmental markers.

The researchers plan to apply such frequency comb devices in various configurations for high precision measurements and sensing. In addition, they will extend these designs for operation in other wavelength ranges, such as the mid-infrared where sensing of chemical and biological agents is highly effective. In cooperation with Columbia Technology Ventures, the team has a provisional patent application and is exploring commercialization of this technology.

SOURCE: Columbia Engineering; https://engineering.columbia.edu/press-releases/smallest-kerr-frequency-comb-generator
