Optical pressure detector could improve robot skin, wearable devices, and touch screens

Aug. 14, 2018
Embedded in flexible, transparent silicone, waveguide-based detectors offer significant advantages over existing electrical sensors.

A new type of pressure sensor based on light could allow the creation of sensitive artificial skins to give robots a better sense of touch, wearable blood-pressure monitors for humans and optically transparent touch screens and devices.1


Researchers from the Electronics and Telecommunications Research Institute (ETRI; Daejeon, South Korea) and Hanyang University (Seoul, South Korea) report on a sensor that detects pressure by analyzing changes in the amount of light traveling through tiny tunnels embedded in polydimethylsiloxane (PDMS), a common type of silicone. The flexible, transparent device is sensitive to even gentle pressure and is less prone to failure compared to previous types of pressure sensors. It also should be feasible to incorporate the embedded optical sensors across a large surface area, researchers say.

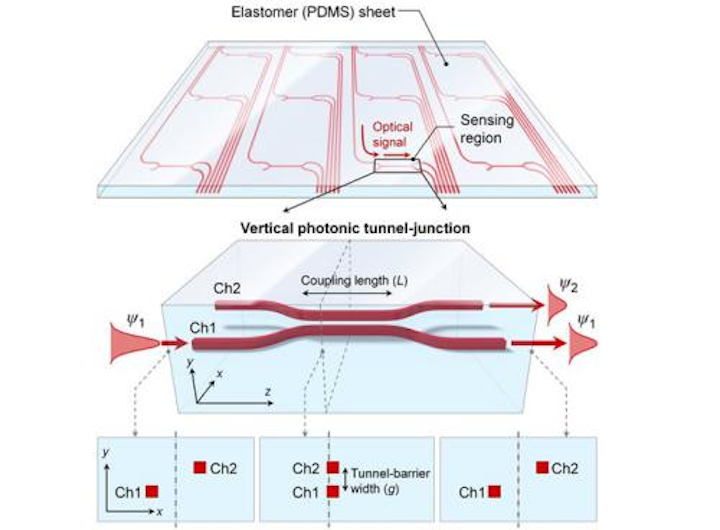

The device works by measuring the flow of light through a precisely arranged pair of optical waveguides called a photonic tunnel-junction array. The waveguides run parallel to each other and are embedded in PDMS. For part of their length they are close enough that light passing through the first tube, channel 1, can pass into the second, channel 2. When pressure is applied, the PDMS is compressed, changing the spacing between the channels and allowing more light to move into channel 2. The pressure also causes a change in the refractive index of the PDMS.

Light enters the device through an optical fiber on one end and is collected by a photodiode on the other. As pressure increases, more light winds up in channel 2 and less in channel 1. Measuring the brightness of the light coming out of the far end of each channel tells the researchers how much pressure was applied.

Though other optical pressure sensors have been developed, this is the first to embed the sensing structure within PDMS. Being embedded protects it from contaminants.

"The silicone sheet can be placed on display panels to enable touch screens, or can be wrapped on robot surfaces as an artificial skin layer for tactile interactions," says Suntak Park, Electronic and Telecommunications Research Institute, Daejeon, South Korea. "Considering that PDMS is a very well-known biocompatible, nontoxic material, the sensor sheet may even be applied on or inside the human body, for example, to monitor blood pressure."

Curved surfaces possible

Measuring pressure distribution over a curved surface can be important in research areas such as aerodynamics and fluid dynamics. Park says the sensors could be useful for studying pressure-related effects on the surfaces of aircraft, automobiles, and ships.

To test the device, the researchers placed a "pressing stub" on top of the sensor and gradually increased the pressure. In a sensor that was 5 mm long embedded in a 50-µm thick sheet of PDMS, the researchers measured a change in optical power of 140% at a pressure of approximately 40 kPa. This proof-of-concept demonstration suggests the device is capable of sensing pressure as low as 1 kPa, roughly the same level of sensitivity as a human finger. The change in blood pressure between heartbeats is about 5 kPa.

Park says several steps are needed to move the sensor from a laboratory demonstration to a practical device. One is to develop a simpler way to attach the optical fibers that move light into and out of the sensor. In developing their prototype, the research team used precision alignment tools, which would be too expensive and time-consuming to use in most commercial applications. An alternative approach, pigtail fibers, which telecommunications companies use to couple fibers in their systems, should make the process easier.

In addition, the team tested their approach with a one-dimensional sensor, whereas most applications would require a two-dimensional array of sensors. That can probably be accomplished by rotating a one-dimensional sheet 90 degrees and placing it on top of another, creating a cross-hatched array. The size of the sensors and the spacing between them would also likely need to be optimized for different applications.

Source: https://www.osa.org/en-us/about_osa/newsroom/news_releases/2018/optical_pressure_detector_could_improve_robot_skin/
