Renishaw calibrator measures six degrees of freedom

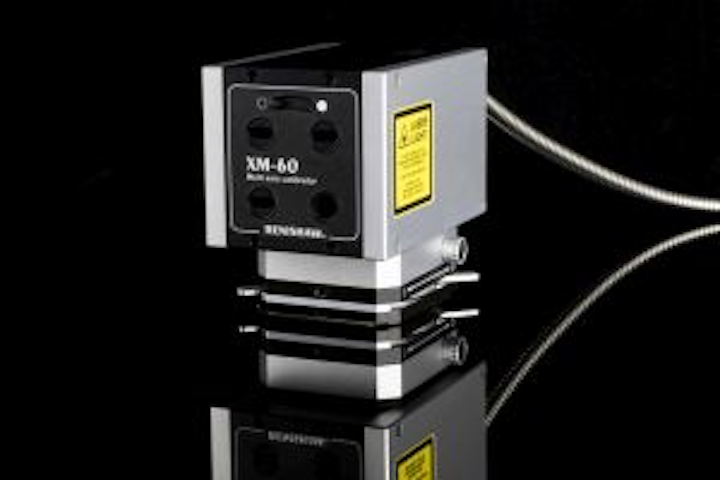

The XM-60 multi-axis calibrator for machine tools measures six degrees of freedom from a single setup in any orientation for linear axes.

Content Dam Lfw Online Articles 2017 02 1702lfw Pro 10 Web

The XM-60 multi-axis calibrator for machine tools measures six degrees of freedom from a single setup in any orientation for linear axes, and captures angular, linear, and straightness errors. It is based on a laser system with optical roll measurement and fiber-optic launch system, using a remote laser to reduce heat at the measurement point.
Renishaw
Wotton-under-Edge, Gloucestershire, England

www.renishaw.com
