Beam measurement tool from Cinogy Technologies measures laser systems from 320 to 1320 nm

July 27, 2015

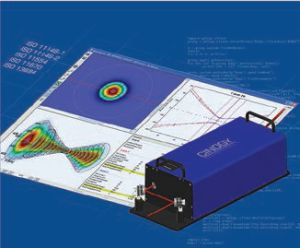

CinSquare is a compact, automated tool to measure the beam quality of CW and pulsed laser systems from 320 to 1320 nm at up to 50 W input power.
CinSquare is a compact, automated tool to measure the beam quality of CW and pulsed laser systems from 320 to 1320 nm at up to 50 W input power. Measurement time is <2 min/30 s fast scan. The system measures the beam caustic and determines parameters including M2, K, BPP, waist position and diameter, and divergence.Cinogy Technologies
Duderstadt, Germany
www.cinogy.com
