Fiber Sensing: Angled optical fiber end performs large-temperature-range sensing

Compared to more complex Bragg gratings and photonic crystal fibers, a simple angled optical fiber end can sense temperature over an expanded range.

Content Dam Lfw Print Articles 2018 07 1807lfw Wn F3

Temperature sensing is ubiquitous in science, and both electronic and optical sensors are available. However, fiber-optic sensors offer immunity to electromagnetic interference and easy, flexible routing in remote-sensing applications.

State-of-the art fiber Bragg grating (FBG)-based temperature sensors offer 10 pm/°C sensitivity, but only operate over a range of temperatures from -200 to +150°C. Likewise, microstructured photonic-crystal fiber or hollow-core fiber sensors offer 18.7 pm/°C sensitivity, but only operate on the high end up to +460°C. Other alternatives that offer better sensitivity include whispering-gallery-mode and surface-plasmon-resonance sensors. Unfortunately, these options have limited temperature sensing range (usually from 0 to +100°C).

But a new fiber-optic sensing design from researchers at Tianjin University (Tianjin, China) uses a simple angled fiber end that relies on interferometric principles to achieve high sensitivity over a very broad range of temperatures from -40 to +140°C and 250 to 900°C, with sensitivity values that increase as temperature rises—specifically, 9.5 pm/°C at -40°C and 17.86 pm/°C at +900°C (see figure).1

Content Dam Lfw Print Articles 2018 07 1807lfw Wn F3

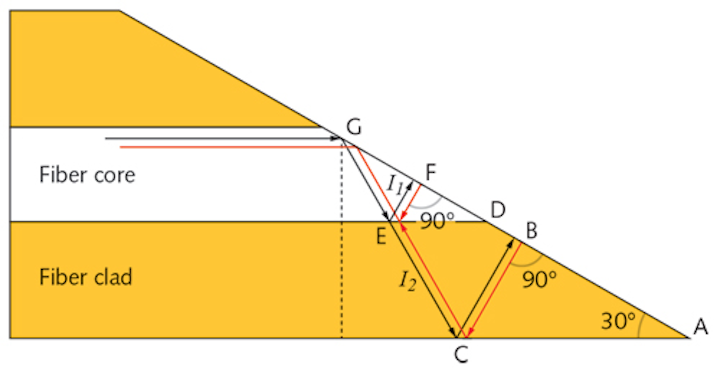

Using interferometric principles, a simple angled fiber end can serve as a temperature sensor, operating over a broader range of temperatures than many other fiber-optic-based designs. (Image credit: Tianjin University)

Angled fiber interferometry

To fabricate the sensor, a standard Corning SMF-28 single-mode optical fiber with approximate 8.2-µm-diameter core and 125-µm-diameter cladding is inserted in a ceramic ferrule and polished to an angle of 60° from the original fiber surface. Since total internal reflection occurs at 43° for a silica/air interface according to Snell’s law, light that traverses through the fiber to its angled end is totally internally reflected, reaches the core/clad interface, and splits into two beams that then travel along different paths before recombining along the fiber core with an optical path difference that can be translated into a phase difference.

This angled end acts like a Michelson interferometer, producing fringes with a spacing of 7.5847 nm for a 1550 nm wavelength. And as the angled fiber end is exposed to temperature variations, thermal expansion of the fiber produces refractive-index changes and subsequent wavelength changes that correlate back to temperature.

The broad range of the sensor is because of the fact that the thermo-optic coefficient and thermal expansion coefficient of the fused silica optical fiber are constant and nonzero over a large temperature range. And the sensor is easily fabricated using standard optical-fiber polishing equipment and 1 µm diamond lapping film followed by a finer 0.3 µm diamond lapping film.

In the experimental setup, light from an amplified-spontaneous-emission (ASE) source with a spectral bandwidth of 1525 to 1605 nm was input to the fiber through a circulator, which also routes the reflected fiber signal to an optical spectrum analyzer (OSA) with a 0.05 nm resolution to measure the interference spectrum.

Temperature was controlled in the experiment in two different ranges by two different types of equipment: first, a Fluke 9171 metrology well temperature calibrator with a -45 to +155°C range and 0.01°C precision, and second, a Lindberg BF51866C Blue Moldatherm Box Furnace with range from 200 to 1100°C and 1°C precision. Experiments confirmed the 9.5 pm/°C and 17.86 pm/°C temperature-sensitivity values at the two extreme temperature ends of the range of -40 to +900°C.

REFERENCE

1. T. Wang et al., Opt. Fiber Technol., 45, 19–23 (2018).
