SCATTERING MEDIA: Turbid-media light propagation is directly imaged

Jan. 17, 2013
Physicists from the Universities of Zurich (Switzerland) and Konstanz (Germany) have now experimentally proven Nobel Prize winner Philip Anderson’s theory that waves do not spread in a disordered medium if there is less than one wavelength between two defects.

Physicists from the Universities of Zurich (Switzerland) and Konstanz (Germany) have now experimentally proven Nobel Prize winner Philip Anderson’s theory that waves do not spread in a disordered medium if there is less than one wavelength between two defects.1

The researchers demonstrated this directly using the diffusion of light in a heavily scattering medium for the first time. (Other experiments have previously shown this effect in, for example, matter waves. The effect has also been previously shown to exist in a photonic medium, but the demonstration did not show things directly via imaging.)

Light cannot spread in a straight line in a turbid medium like milk because the many particles serve as defects and scatter the light. If the disorder (the concentration of defects) exceeds a certain level, the waves can no longer spread at all. Philip Anderson was the first to describe this transition to a localized wave in 1958. Until now, however, Anderson localization had never been observed directly in light.

Propagation imaged at nanosecond rates

For their study, the team chose highly scattering titanium dioxide powders with differing localization lengths; the experimental thicknesses of 0.6 to 1.5 mm produced on average a few million scattering events. The light source was tunable from 550 to 650 nm; images were captured by an ultrafast gated CCD camera.

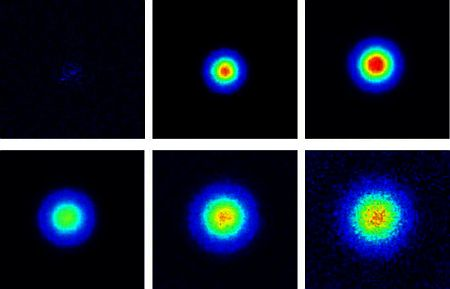

“To make the diffusion of the light and thus Anderson localization visible, pictures had to be taken at an interval of less than a billionth of a second,” says Christof Ägerter, one of the University of Zurich researchers. Based on these high-resolution images, the researchers showed that light stops spreading in the medium after around 4 ns when under the effects of Anderson localization.

Calculating certain characteristics of localized states, such as determining the critical concentration of defects, is difficult. “Thanks to our experimental data, the theory will gain new impetus and be able to be refined further,” Ägerter adds.

Such information can help in improving methods of imaging through turbid media, such as optical coherence tomography (OCT) and some forms of microscopy.

REFERENCE

1. T. Sperling et al., Nat. Photon., 7, 48 (January 2013).
