Near-infrared metasurface reflects only one direction of circularly polarized light

A chiral optical metasurface selectively absorbs either left- or right-handed circularly polarized light; it could be useful in imagers and other optical systems.

Content Dam Lfw Print Articles 2018 12 1812lfw Nb F4

Chiral surfaces, which have differing responses for left- and right-handed circularly polarized (LCP and RCP) light, can be useful in optical experimentation. Metamaterials, which can be made into circular polarizers, are promising for creating chiral surfaces. Scientists at the Missouri University of Science and Technology (Rolla, MO) and the Argonne National Laboratory (Argonne, IL) have now created a chiral metamaterial-absorbing surface that has a large circular dichroism (CD) over the 1.3–1.8 μm spectral region. The chiral absorber could be useful for optical filters, thermal energy harvesting, optical communication, and chiral imaging.

Content Dam Lfw Print Articles 2018 12 1812lfw Nb F4

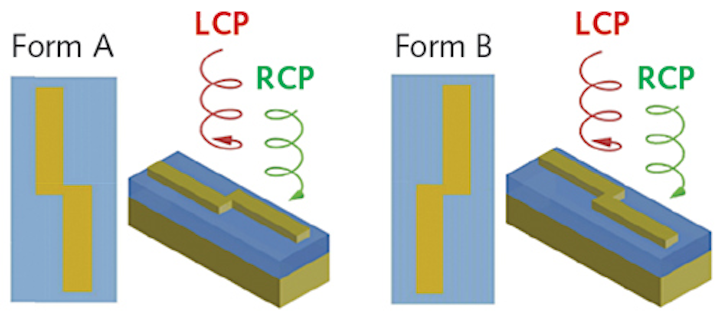

The metasurface absorber is made of a three-layer thin-film metal-dielectric-metal (55 nm gold, 130 nm silica, and 200 nm gold) structure deposited on a glass substrate and patterned into 2D periodic arrays of identical zig-zag shapes. Five arrays with different sets of dimensions were constructed, each having a different resonance wavelength. The researchers measured their optical reflection spectra with a Fourier transform infrared spectrometer connected to an infrared microscope, using a polarizing setup to specify the polarization of the incoming light. The measured maximum chiral absorption can reach 0.87 while the maximum CD is around 0.70. Reference: L. Ouyang et al., Opt. Express (2018); https://doi.org/10.1364/oe.26.031484.
