WAVEGUIDES

Near-field imaging shows nature of propagation

W. Conard Holton

A near-field scanning optical microscopy (NSOM) experiment has shown that light propagation through complex optical devices with subwavelength resolution can be completely assessed. The work was performed by researchers at France Telecom`s Laboratoire de Bagneux (Bagneux, France) and the Laboratoire d`Optique Physique of the Ecole Supérieure de Physique et Chimie Industrielles de la Ville de Paris (Paris, France).

Several studies have investigated the capability of NSOM with subwavelength tips to map the propagation of light and the losses on top of guiding devices with a very high spatial resolution. Most of this work, however, has been done on dielectric waveguides. The French researchers were able to show that NSOM could measure optical intensity distribution with less than l/5 resolution on III-V optical devices operating at the important telecommunications wavelengths between 1.3 and 1.55 µm (see Fig. 1 on p. 24). Performance was also demonstrated on polymer and glass waveguides.

To obtain the measurements, the waveguide was illuminated by a 1.55-µm laser diode. Output was monitored by an infrared microscope, while--in the basic test--the top of an indium phosphide/indium gallium arsenide phosphide (InP/InGaAsP) waveguide was scanned by the tip of an uncoated, tapered single-mode optical fiber. A cooled germanium detector registered the results (see Fig. 2).

Tien effect observed

The researchers discovered a side-benefit in this profiling of light progation--they believe that the modulation pattern reveals an until-now unobserved small undulation of the light beam inside the waveguide, a phenomenon predicted by P. K. Tien in 1965.1,2 The Tien effect is caused by the balance between the converging effect of the index gradient in waveguides and the diverging effect of diffraction. The resulting phenomenon is of small longitudinal modulations of the center and radius of the light beam, especially pronounced in small guides.

This effect has been used by the researchers to enhance how the light path in complex devices was visualized and how the variation in light intensity along the path was monitored. The Tien effect was usually intentionally suppressed in the course of obtaining the mode profile and the variation of the average light intensity along the propagation path. But, because it appeared perpendicular to the propagation axis, the Tien effect proved useful in sections of devices where that axis was not clearly known, serving as a marker that visualizes the propagation.

Given that conventional far-field techniques no longer have the necessary spatial resolution, the ability to analyze optical semiconductor devices in this manner should prove increasingly important as devices continue to shrink in size and increase in integration.

REFERENCES

1. P. K. Tien, J. P. Gordon, and J. R. Whinnery, Proc. IEEE 53, 129 (1965).

2. P. K. Tien, Rev. Mod. Phys. 49, 361 (1977).

Click here to enlarge image

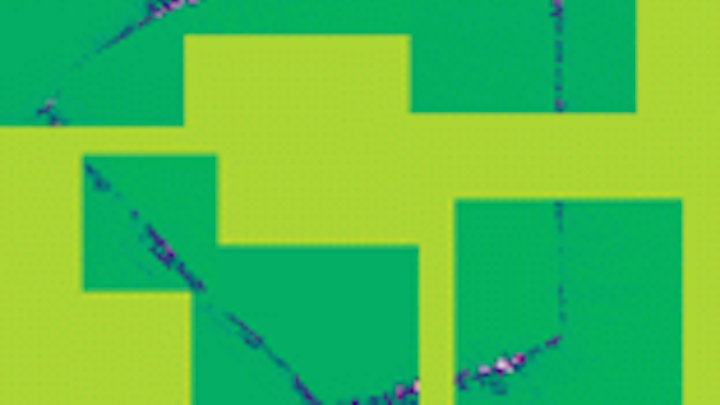

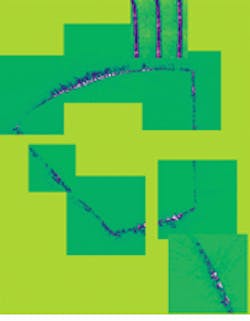

FIGURE 1. Images of the evanescent field in a III-V waveguide derived from NSOM measurements provide an accurate (۪.1 µm) measure of the mode profile in the direction perpendicular to the propagation axis and show a modulation of the optical intensity along this direction. Local losses corresponding to fields propagating out of the guide can be correlated to topographic features.

Click here to enlarge image

FIGURE 2. Experimental NSOM setup relied upon a telecommunications-wavelength laser diode, a scanning fiber tip controlled by piezoelectric (PZT) actuators, and a germanium detector to provide the data necessary for analyzing light propagation through the waveguide.
