QUANTUM-DOT SOURCES: Quantum-dot development pursues new applications

Despite limited gain and modulation response, quantum dots offer several advantages as optical sources for telecommunications and other industrial applications.

Jan 1st, 2006
Th 0601lf03f1

Despite limited gain and modulation response, quantum dots offer several advantages as optical sources for telecommunications and other industrial applications.

ANDREA FIORE, ALEXANDER MARKUS, MARCO ROSSETTI, LIANHE H. LI

Despite the initial expectations of high differential gain, the modulation response of quantum-dot (QD) lasers has remained limited in the most interesting 1300- to 1550-nm wavelength region. New applications, however, do take advantage of unique features of quantum dots.

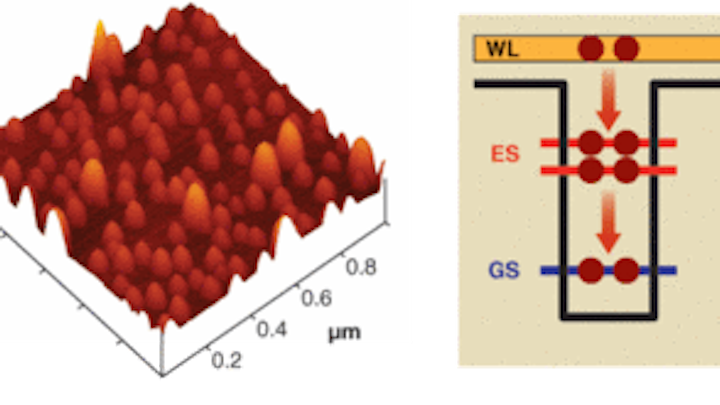

FIGURE 1. Atomic-force microscopy shows a QD array (InAs on GaAs) for emission at 1300 nm (left). Schematic diagram of conduction band of a single QD, simplified for clarity, shows only two sets of energy levels: �ground state� (GS) and �excited state� (ES), analogous to the atomic s and p shells (right).
Click here to enlarge image

Quantum dots are semiconductor nanostructures in which electrons and holes are confined into nanometer-size islands of a low-bandgap semiconductor like indium arsenide (InAs) within a higher-bandgap matrix, such as gallium arsenide (GaAs) or indium phosphide (InP). Because of the three-dimensional (3-D) confinement, the energy levels in each island are discrete, much like in atoms (see Fig. 1, right), in contrast to the continuous dispersion relations of bulk and quantum-well (QW) active materials. This characteristic raised hopes that the QD gain spectrum would be narrower, and the peak gain and differential gain higher, for a perfectly uniform array of QDs.1

While rather uniform QD arrays have been realized by growth on nanopatterned substrates, room-temperature lasing has been achieved only by using planar, self-assembled epitaxial growth techniques.2, 3 Deposition of InAs in appropriate conditions, for instance, results in the spontaneous formation of flat In(Ga)As islands on top of a 2-D In(Ga)As “wetting” layer or WL (see Fig. 1, left). This growth mode is favored over conventional 2-D growth since partial relaxation of the compressive strain can occur on top of the InAs islands, lowering the elastic energy. A higher local indium concentration, and thus a longer emission wavelength, is possible in QDs, as compared to QWs.

Gain spectrum

The energy spectrum of a single QD is discrete, but the dispersion in QD sizes resulting from the spontaneous nucleation process produces a dispersion of energy levels, and consequent inhomogeneous broadening of several tens of nanometers in the gain spectrum. The gain spectrum of self-assembled QDs is thus broader, and the peak gain lower as compared to conventional QWs. The gain value is further limited by the maximum surface density of QDs.

For QDs the material gain is not a well-defined parameter because its use implies that the gain would scale with the QD volume, which is not correct as long as the optical wave interacts with a single quantum state. Modal gain is a more adequate measure of gain. Typical maximum values (for 1300‑nm QDs) in a typical edge-emitting laser structure fall more than 10 times lower than the maximum modal gain achievable with QWs (a difference that is easily ascribed to the lower density of states and the larger spectral width). A low modal gain requires low cavity loss and severely impacts the laser modulation response through gain saturation, as observed in first generations of QD lasers.


FIGURE 2. The 3-dB modulation bandwidth of a QD laser was calculated as a function of the intraband relaxation time, for different maximum modal gains. Modal gain was measured at room temperature in a p-doped, 10-layer structure grown by NL Nanosemiconductor.
Click here to enlarge image

When the gain of the lowest energy state in the band (“ground state,” GS) is too low, the device tends to lase on upper energy levels (“excited states,” ES), which have higher degeneracy and thus higher gain. A strong effort has thus been dedicated to improving the modal gain by stacking several layers of QDs. This task is nontrivial, as the strain produced by the lower layers changes the growth conditions of upper layers. Much progress has been achieved recently, particularly by NL Nanosemiconductor (Dortmund, Germany), with state-of-the-art modal gain values in the 20- to 30-cm-1 range in ten-layer QD laser structures (see Fig. 2, inset).4 These values allow GS lasing in as-cleaved edge-emitting devices as short as 600 µm, and prevent gain saturation, resulting in modulation rates up to 10 Gbit/s.4, 5

Modulation properties

The possibility of modulating a laser at a given frequency depends on the coupling between carriers and photons-as measured by the differential gain-and ultimately by the damping introduced by any slow time constants in the system as measured by the gain compression factor. The intraband relaxation time (that is, the time it takes an injected electron to relax down to the GS) affects both the differential gain (by producing an accumulation of carriers on higher-energy states) and the gain compression factor (through hole burning), and can ultimately limit the modulation bandwidth. Intraband relaxation rates are slower in QDs than in QWs (intraband carrier relaxation consists of the sequence of carrier capture from the WL into the QD and a stepwise cascade through the various energy levels) because the energy differences do not in general match the optical phonon energy. Relaxation proceeds through higher-order processes such as multiphonon or carrier-carrier scattering.

The combined capture and interlevel relaxation process from the WL to the GS of an empty QD typically takes several picoseconds, as determined by time-resolved photoluminescence spectroscopy. Moreover, GS filling reduces the relaxation rate through Pauli blocking, particularly in a laser operating close to gain saturation. A detailed analysis shows that interlevel relaxation between the lowest ES and the GS is the limiting process for the modulation bandwidth. In particular, the maximum 3-dB modulation frequency can be approximately related to the relaxation time and the maximum modal gain (see Fig. 2).6 The modulation bandwidth can be increased by either increasing the available gain (the number of QDs) or reducing the relaxation time.

State-of-the-art 1300-nm QD lasers operate with relaxation times in the 3- to 6-ps range and modal gains of 20 to 30 cm-1, corresponding to a bandwidth close to 10 GHz.4, 5, 7 Similar bandwidths have been measured on InAs/InP QDs emitting at 1550 nm, while a much higher bandwidth of 22 GHz has been reported for InAs/GaAs QD lasers at 1100 nm, because of higher gain and shorter relaxation time obtained by a tunnel-injection structure.8 As the potential for large improvements in modal gain appears limited, bypassing the relaxation bottleneck by tunnel-injection schemes or by engineering the interlevel relaxation process will be needed for increasing the modulation bandwidth of 1300- to 1550-nm lasers.

Quantum-dot advantages

Despite their limited gain and modulation frequency, QD active regions have several advantages connected to their discrete density of states. First, the temperature dependence of the laser threshold current (measured by the characteristic temperature T0) can be much better than QW lasers because the electronic levels in the conduction band are spaced by more than the Boltzmann energy, kT, and thus little change in the population distribution occurs around room temperature. Temperature-independent operation between 20°C and 85°C has been achieved recently in 1300-nm lasers with p-doped QDs.

The idea behind p-doping the QDs is that hole levels are more closely spaced because of the larger effective mass, so that thermal spreading can occur in the valence band: by forcing a large hole population the quasi-Fermi level is pushed deep in the band and a constant hole occupation of the lasing state is ensured.9 Experimentally, p-doping increases the room-temperature threshold-current density (due to increased nonradiative recombination and optical loss), but also makes it temperature-independent up to 85°C, eliminating the need for active cooling and temperature control.

A second advantage of QD lasers is the possibility of engineering the linewidth-enhancement factor (LEF) or gain-phase coupling. Indeed, because of the Gaussian distribution of QD sizes, a symmetric gain spectrum is obtained from the GS, resulting in very low (less than 1) LEF and low chirp, as demonstrated experimentally.7 On the other hand, if the laser is operated close to GS gain saturation, the differential gain becomes very small and asymmetric, leading to very large values of the LEF (greater than 50 has been reported), and opening the way to pure phase modulation in a QD amplifier.10 These characteristics are intimately connected to the discrete density of states of the QD active region.

Finally, the large inhomogeneous broadening can be turned into an advantage for applications that require a broad gain spectrum, such as tunable lasers, semiconductor optical amplifiers (SOAs), and superluminescent diodes (SLEDs). Quantum-dot SOAs and SLEDs also have the potential for a large saturation output power, due to the presence of a carrier reservoir in the ES and WL.

Quantum-dot SOAs with 20-dB chip gain over a 120-nm bandwidth around 1500 nm have been demonstrated, although the strong polariza tion dependence is still preventing applications as in-line amplifiers.11 In contrast, polarization dependence is not an issue for QD SLEDs, which can be used as sources for optical coherence tomography in both the 1050- and the 1300-nm wavelength regions, of interest for medical applications.


FIGURE 3. Electroluminescence spectrum describes performance of a QD SLED with a 100-nm bandwidth developed by SLED vendor Exalos and the EPFL. The emission peaks from the GS (1270 nm) and ES (1200 nm) merge in a single spectral line.
Click here to enlarge image

By using chirped QD multilayers and combining GS and ES gain spectra, a spectral width as large as 120 nm has been achieved (see Fig. 3).12 Further optimization is under way to achieve a more Gaussian-shaped spectral linewidth (and thus reduce the coherence length), and further increase the output power (currently in the 1- to 10-mW range).

While QDs have not fulfilled the old dream of an atomic-like gain material, their quantized energy spectrum brings several other advantages, including temperature insensitivity, small chirp, and broad gain spectrum, making them appealing for several industrial applications. A European consortium (FP6 integrated project “ZODIAC”) comprising several industrial and academic laboratories, is currently investigating the application of QD active regions in directly modulated lasers, tunable lasers, and amplifiers.13 Superluminescent LED applications are being investigated by SLED vendor Exalos (Zurich, Switzerland).
