Current injection timing enables simple LED color tuning

May 15, 2019
A new technique could pave the way for monolithic integration for simple color tuning of a light bulb.

A new techniquethe result of an international collaboration of scientists from Lehigh University (Bethlehem, PA), West Chester University (West Chester, PA), Osaka University (Osaka, Japan) and the University of Amsterdam (Amsterdam, Netherlands)could pave the way for monolithic integration for simple color tuning of a light bulb, according to Volkmar Dierolf, distinguished professor and chair of Lehigh's Department of Physics, who worked on the project. "This work could make it possible to tune between bright white and more comfortable warmer colors in commercial LEDs," says Dierolf.

The team demonstrated the possibility of color tuning gallium nitride (GaN)-based LEDs simply by changing the time sequence at which the operation current is provided to the device. Notably, the technique is compatible with current LEDs that are at the core of commercial solid-state LED lighting.

The work is described in an article published online in ACS Photonics called "Color-Tunablility in GaN LEDs Based on Atomic Emission Manipulation under Current Injection." The lead author, Brandon Mitchell, is a former graduate student in Dierolf's lab and now an assistant professor in the Department of Physics and Engineering at West Chester University.

In today's active LED displays, different colors are produced by three to four individual LEDs that are placed close to each other and create the different fundamental colors needed to produce the full color spectrum.

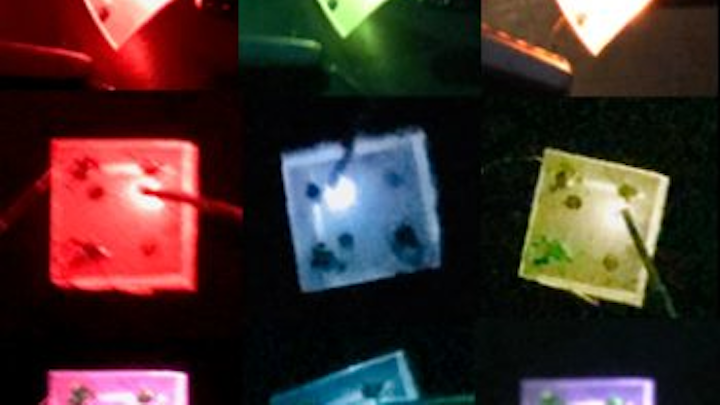

"We demonstrate that this can be achieved by a single LED," says Dierolf. "We show that is possible to attain red, green and blue emissions originating from just one GaN LED-structure that uses doping with a single type of rare earth ion, Europium (Eu)." Dierolf says that using intentional co-doping and energy-transfer engineering, all three primary colors can emit due to emission originating from two different excited states of the same Eu3+ ion (about 620 nm and 545 nm) mixed with near-band-edge emission from GaN centered at approximately 430 nm. The intensity ratios of these transitions can be controlled by choosing the current injection conditions such as injection current density and duty cycle under pulsed current injection.

In other words, the team achieved color-tunability in a single GaN-based LED through the manipulation of the emission properties of an atomic-type dopant.

Mitchell pointed out that "The main idea of this workthe simultaneous active exploitation of multiple excited states of the same dopantis not limited to the GaN:Eu system, but is more general. The presented results could open up a whole new field of tunable emission of colors from a single dopant in semiconductors, which can be reached by simple injection current tuning."

According to Dierolf, this research may benefit those who are looking for more comfortable "warmer" white light from LEDs. "It could pave the way for monolithic integration for simple color tuning of a light bulb," adds Dierolf. "It would also be beneficial for micro-LED displays, since it allows for higher density of pixels."

The materials used in previous research on color tunable LEDs did not allow for easy integration with current LED technology, he adds. This work is compatible with current GaN-based LEDs used in solid-state lighting applications.

SOURCE: Lehigh University; https://www2.lehigh.edu/news/new-technique-could-pave-the-way-for-simple-color-tuning-of-led-bulbs
