Equipment Solutions digital autocollimator system measures over distances to 2.0 in

Nov. 7, 2011
The AC201 2-axis angular displacement Digital Autocollimator System measures very small angular displacements over distances to 2.0 in.

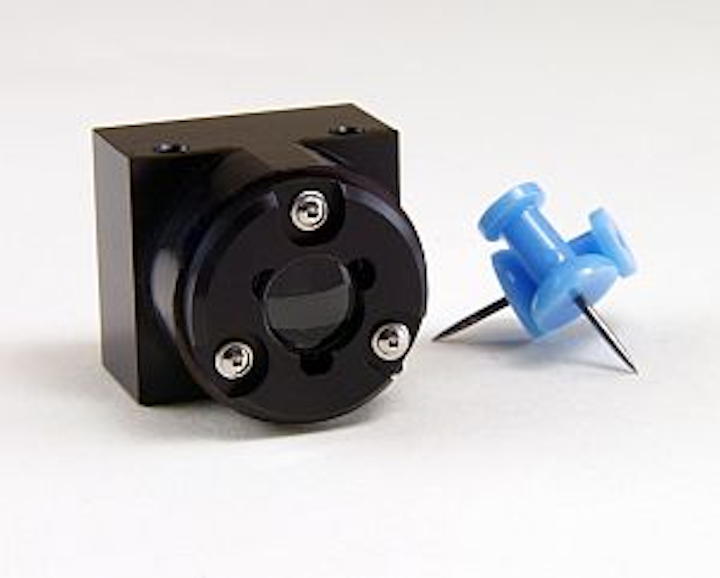

The AC201 2-axis angular displacement Digital Autocollimator System measures very small angular displacements over distances to 2.0 in. It features an optical angular range of ±344 arcsec (±100 mrad), and a sensitivity of 0.2 arcsec (1.0 μrad). Supplied with Windows application software, it is suited for instrumentation, tooling, and OEM manufacturers.
Equipment Solutions
Escondido, CA
[email protected]

More Products

----- PRESS RELEASE Measure Very Small Angular Displacements Of Very Small Parts With Low Cost Digital Autocollimator Sunnyvale, CA, — The AC201 2 axis high performance angular displacement Digital Autocollimator System from Equipment Solutions, Inc. is a very compact high precision instrument designed to measure very small angular displacements with high sensitivity over distances to 2.0 in. (5.06 cm). The AC201 Digital Autocollimator is therefore ideal for instrumentation, tooling, and OEM manufacturers with requirements for high precision alignment, flatness, squareness of surfaces in relation to each other, detection of angular movement, shaft straightness, motion control, and other orientation measurements. This rugged and compact 1.0 in. x 1.1 in. x 1.3 in. (2.5 cm x 2.8 cm x 3.3 cm), low cost digital autocollimator can interface with a PC. The AC201 Digital Autocollimator has an optical angular range of ±344 arc sec (±100 mrad), and a sensitivity of 0.2 arc sec (1.0 µrad). The laser has a beam diameter of < 0.125 in. (<3 mm) and requiring only a slightly larger reflection surface. Electrical requirements are: +5.0 VDC @ 30 mA. The AC201 Digital Autocollimator can be factory configured with one of several different interfaces including Analog, USB, SPI, or quadrature encoder. The black anodized (per MIL-A-8625C) 6061-T6 Aluminum body has 2x 4-40 mounting holes and integral electronics and connections are via a Nano D9 or USB connector. Supplied with a Windows® application software and more than 24 ASCII commands for control and operation, the AC201 Digital Autocollimators are able to perform complex data collection and analysis. They are ideal for: Vibration analysis, mechanical and optical alignments, servo control feedback, tip & tilt measurements, settling time and stage damping analysis, and measurements needed in the manufacturing and testing of miniature mirrors and lenses, linear and rotary stages, fiber optic components, robotic components, and medical analytical devices. Equipment Solutions, Inc. (ESI) is a provider of engineering and manufacturing services. ESI specializes in the design and production of automation and instrumentation products including motion control components and sub systems. ESI's products range from galvanometer amplifiers with an integrated arbitrary waveform generator, to high-resolution displacement sensors, voice coil and stepper motor stages, amplifiers and controllers. -----Follow us on Twitter Follow OptoIQ on your iPhone; download the free app here.Subscribe now to Laser Focus World magazine; it's free!
