Weld scanning system from Blackbird Robotersysteme detects errors in welding

A scanning system includes edge tracking and seam topology measurement based on optical coherence tomography (OCT).

Content Dam Lfw Online Articles 2017 07 1708lfw Pro 21 Web

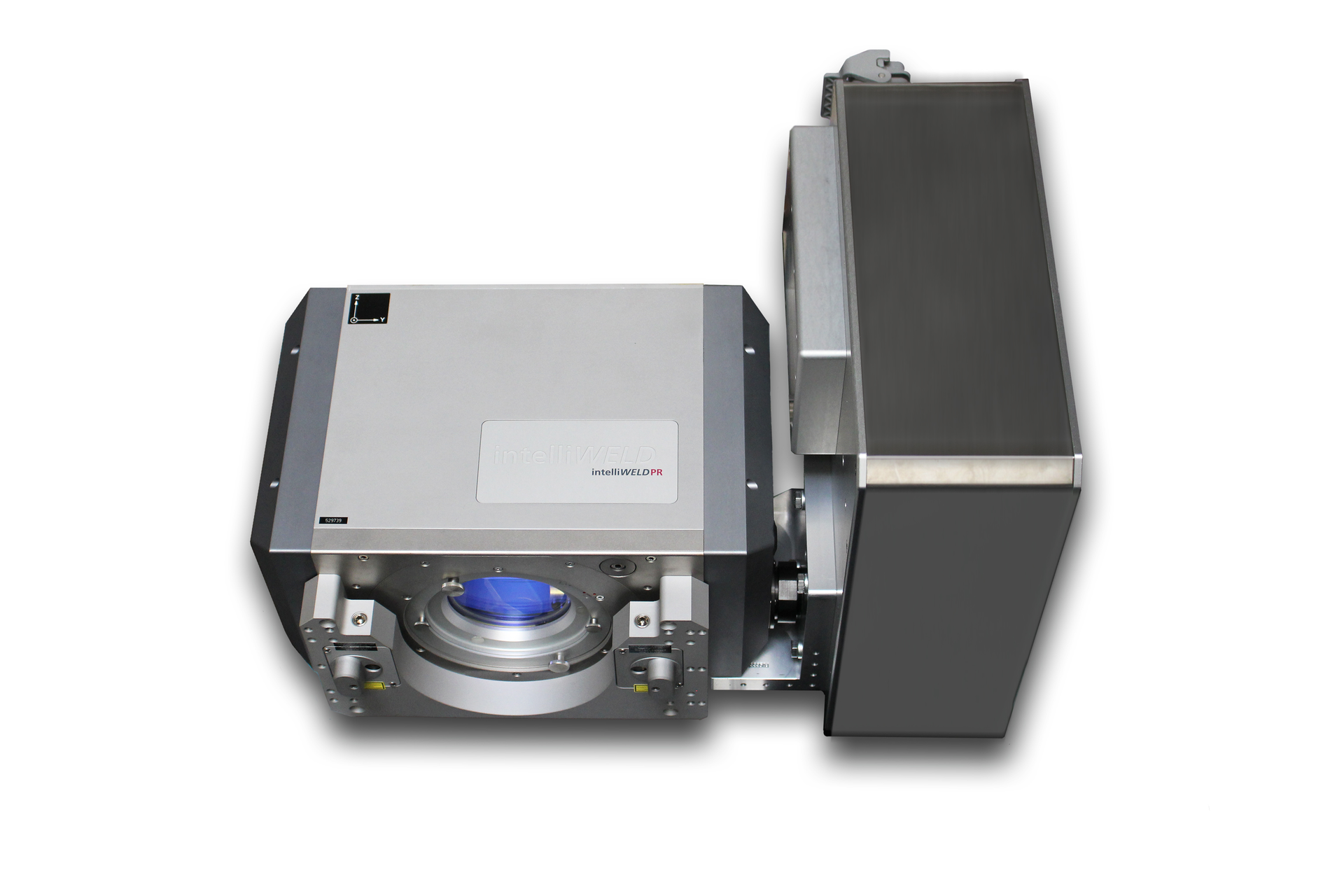

A scanning system includes edge tracking and seam topology measurement based on optical coherence tomography (OCT) to analyze components to be welded and detect errors in welding. The measuring beam has its own scan system for positioning all around the processing point. It gets a detailed three-dimensional representation of the weld seam for quality assurance.

Blackbird Robotersysteme

Garching, Germany

www.blackbird-robotics.de
