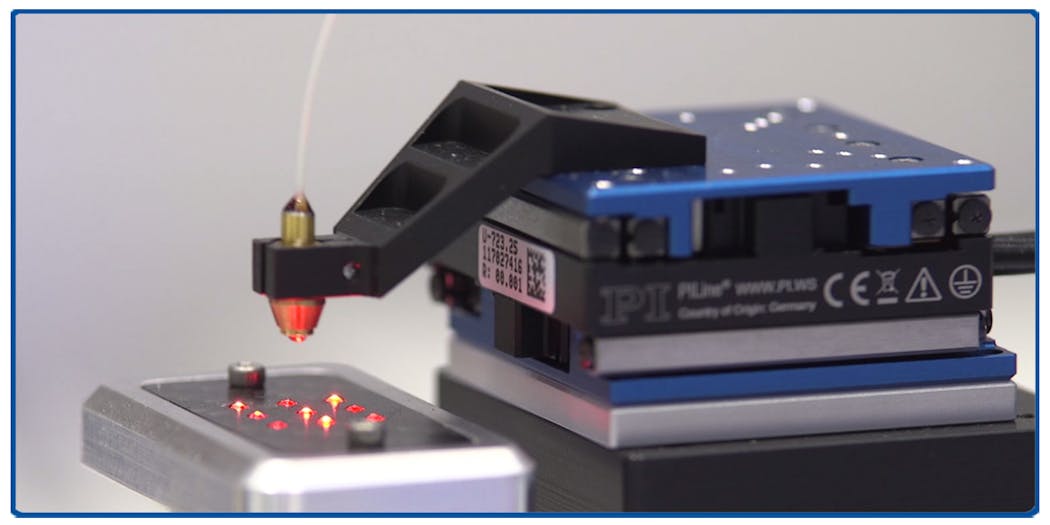

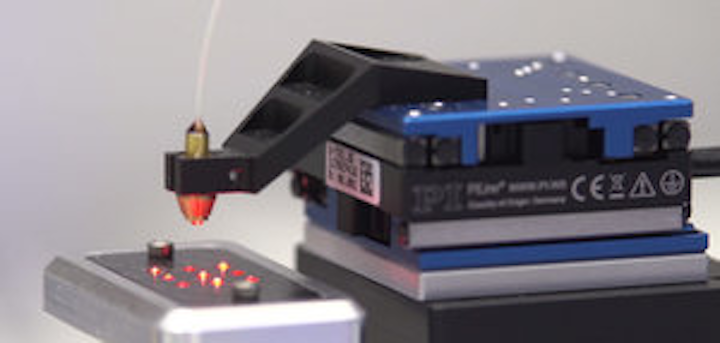

Compact XY stage from PI offers motion up to 200 mm/s

The U-723 compact linear stage provides >0.8 in. travel per axis (22 x 22 mm), with a footprint of 42 x 42 mm.

Content Dam Lfw Online Articles 2017 10 Rsz 1710lfw Pro 12

The U-723 compact linear stage provides >0.8 in. travel per axis (22 × 22 mm), with a footprint of 42 × 42 mm. Its 21 mm profile allows for integration into existing systems when space is limited. It offers motion up to 200 mm/s, and the direct drive with no rotating parts allows settling times in the millisecond range.

PI (Physik Instrumente)

Auburn, MA

www.pi-usa.us
