Physik Instrumente to build position actuators for primary mirror of ESO's ELT

June 21, 2017

The PACTs will adjust the positions of the 798 hexagonal segments of the primary mirror of Extremely Large Telescope.

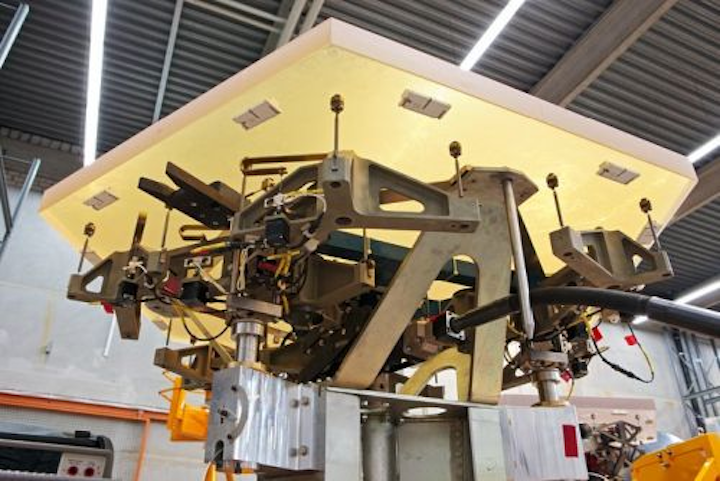

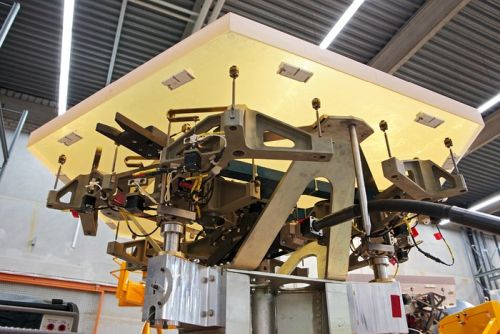

One segment of the giant primary mirror of the Extremely Large Telescope undergoing testing at ESO’s facility in Germany in 2012.

ESO, the European Southern Observatory, has signed a contract with the Physik Instrumente (PI; Karlsruhe, Germany) to construct the position actuators (PACTs) that will adjust the positions of the 798 hexagonal segments of the primary mirror of ESO’s Extremely Large Telescope (ELT). The segments that make up the ELT’s 39-m main mirror will be connected to the main telescope structure via a support system (ann15003), of which the PACTs are fundamental components.

Each segment of the ELT--approximately 1.4 m across and weighing 250 kg--will be mounted on three PACTs, for a total of 2394. The PACTs will support the segment and actively control its position in three directions, known as piston, tip, and tilt. The control system of the ELT primary mirror will initiate tiny adjustments to the PACTs to maintain the mirror’s overall shape, correcting for deformations which may be caused by changes in telescope elevation, temperature, and wind forces, as well as limiting the effects of vibrations.

Physik Instrumente has worked with ESO before, providing the hexapods that align the subreflectors to the large main reflectors of the radio telescopes that make up the Atacama Large Millimeter/submillimeter Array (ALMA). ESO (formally known as the European Organisation for Astronomical Research in the Southern Hemisphere) is headquartered in Garching, Germany, and is an inter-governmental organization supported by 16 Member States, along with the host state of Chile. The current Director General is Prof. Tim de Zeeuw.

Source: ESO
