Aerotech releases IP-66 rated rotary stages

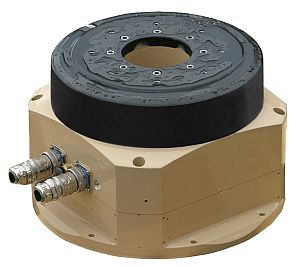

The ASRT is an IP66-rated, direct-drive, sealed rotary stage that provides angular positioning in hostile environments subject to dirt, dust, cutting fluids, and fluid jets. The brushless, slotless motor has no gear trains to maintain, and exhibits high acceleration and high speeds. Operating with continuous or limited travel, the stages can handle axial loads up to 175 kg, and are available in 30, 80, and 130 mm aperture sizes.
Aerotech
Pittsburgh, PA
------
PRESS RELEASE
IP66-Rated Direct-Drive Rotary Stages Bring
High-Accuracy Motion to Hostile Environments
IP66: Protected against dust and water jets from any direction
Direct-drive motor provides rapid precision motion with no gear backlash
Low-friction seal minimizes direction reversal hysteresis
Continuous or limited travel
Axial load capacity up to 175 kg; 100-200 rpm continuous rotation speed
Three different aperture sizes: 30 mm, 80 mm, 130 mm
The ASRT is an IP66-rated, direct-drive, sealed rotary stage that provides precise angular positioning in hostile environments where dirt, dust, cutting fluids and fluid jets are present. Applications range from industrial machining automation to precision sensor positioning in hostile environments, and the ASRT is also an effective solution for precise rotary motion in product environmental test and range tracking applications.
The ASRT is offered with either high accuracy encoder or magnetic encoder feedback. Unlimited travel is standard, with an optional limited travel model also available. Three different models cover a wide range of load and torque requirements.
Brushless Direct-Drive
The ASRT series uses Aerotech’s brushless, slotless motor that has no brushes to wear, no gear trains to maintain, and high acceleration and high speeds. The low inertia and zero backlash make the ASRT the ideal solution for applications requiring frequent directional changes. In addition, Aerotech manufactures a wide range of servo amplifiers and advanced controllers to provide a complete, integrated package.
Superior Mechanical Design
Dual large-diameter bearings are used to maximize performance with respect to tilt error motion (3 arc sec), moment stiffness, and repeatability (1 arc sec). The large diameter bearings permit large payloads (up to 175 kg) without compromising performance.
Maximum rotary speeds are from 100 to 200 rpm. The ASRT includes an electrically grounded shaft and housing to protect against electrical shock and eliminate RF re-radiation, and housing grounding points are included. Circular sealed connectors are standard, while options include desiccant cartridge, air purge, and mounting flange accessory.
A polymer-based paint on the housing and a hard-coated tabletop prevent corrosion. The stage has optional brown, green, grey, black, and white paint colors. Standard operating temperature is 0 to 70°C. Operation below freezing requires the optional air-purge and desiccant, with air-purged stages operational from -20 to 70°C.
For further information, please contact Steve McLane at 412-967-6854 (direct), or via e-mail at [email protected].
The ASRT series data sheet is available at:
http://www.aerotech.com/products/stages/asrt.html
A video of the ASRT in action is available at:
http://www.aerotech.com/video/ASRT_rotary_stage.html
