Electro-Optical Products introduces frequency chopper shutter

June 3, 2013

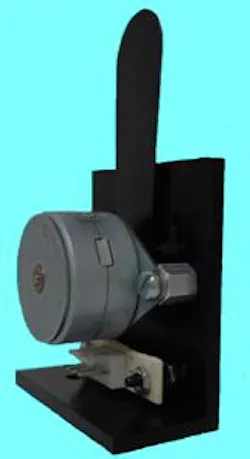

The Model CH-62 optical chopper/shutter is a variable low-frequency device operating from DC to 25 Hz.

The Model CH-62 optical chopper/ shutter is a variable low-frequency device operating from DC to 25 Hz. It consists of a blade mounted on a motor with a limited rotation angle. In internal mode, the chopping frequency is set by an oscillator adjustable from 1 to 25 Hz. External mode is controlled by an external TTL signal.
Electro-Optical Products
Fresh Meadows, NY

www.eopc.com

More Products

-----

NEW PRODUCT for immediate release:

ELECTRO-OPTICAL PRODUCTS CORP. introduces: Model CH-62 OPTICAL CHOPPER/SHUTTERis a low costVARIABLE LOW FREQUENCY device (DC to 25Hz) that consists of a blade mounted on a motor with a limited rotation angle. Current in one direction will set the chopper to the open position and current in the other direction will set the chopper to the close position.

Using ourDCH-62 driver with the “MODE” selector switch provides two modes of operation for theCH-62 chopper/shutter: In the internal mode theCH-62 is used as a variable low frequency chopper. The chopping frequency is set by an internal oscillator adjustable from 1 Hz to 25 Hz.

In the external mode theCH-62 is used as a chopper or as a shutter and is controlled by an external TTL signal input. “high” input keeps theCH-62 open, “low” input keeps it close. Response time is 10msec. Maximum frequency for TTL input is 25Hz.

There is NO CLICKING NOISE when closing the device. It is ideal for medical applicationswhere patients get tense and edgy when they hear the “click” noise. The chopper is easy to integrate and available in high volume quantities. It is especially suitable for low cost dedicated applications, OEM, built into an instrument/system, and portable systems.

Features: APERTURE SIZE: 0.625" (16mm) Dia

RESPONSE TIME: 10 msec, from an OPEN position to a CLOSE position, or vice-versa

FREQUENCY STABILITY: 0.1% internal clock, 0.005% with external crystal clock input

Benefits:

*NO CLICKING NOISE (no hard stop).

*LOW COST

*Simple to operate

*Jitter free operation

*High frequency stability (to 0.005%)

*Small size

*Withstands shock and vibration

*High reliability, long life

*Accepts external clock input

*Phase locking to an external input

*Can be stopped in the "ON" or "OFF" position

*No radiated electromagnetic interference (EMI)

*Bright or dark blade

*A BOXED chopper optional

*Special pricing for OEM applications.

-----
