Electro-Optical Products laser safety shutters have position indicators

March 5, 2013

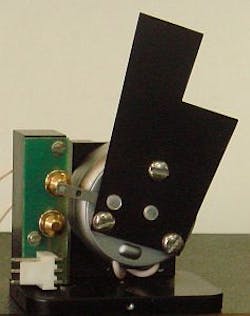

SH-10-PI laser safety shutters feature an integrated return spring that jumps to the "off" position in the event of power failure.

SH-10-PI laser safety shutters feature an integrated return spring that jumps to the "off" position in the event of power failure. Able to mount directly on an optical table and available with several blade solutions to fit different wavelengths and powers, the shutters also feature position indicators and two magnetic sensors to identify blade position. Standard and long-life versions are available, which deliver 2 million and 50 million cycles minimum, respectively.
Electro-Optical Products
New York, NY

www.eopc.com/sh10.html

More Products

-----

PRESS RELEASE

Electro-Optical Products Corp.offers patented technology:
Model SH-10-PI X-Ray and Laser Safety Shutter with Position indicators.

The simple to operate, low cost, long life LASER SAFETY (Interlock) SHUTTER has Integrated return spring that jumps to the “OFF” position in case of power failure. It also has position Indicators, two magnetic switches (sensors), to identify the position of the blade. A three pin MOLEX connector (P/N 22-03-2031) is used as output.

The SH-10-PI Shutter can be mounted directly on an optical table. Expected life:
Standard: 2 million cycles minimum
Long life: 50 million cycles minimum
Also available:
-A boxed version with cutout for laser (X-Ray) light
-Blade solutions to fit a multitude of wavelengths and power
-Custom size blades
-Low power drive electronics
-Timers
The safety shutter is a stock item and is RoHS compliant.
On the web: http://www.eopc.com/sh10.html

Electro-optical Products Corp. manufactures and supplies standard, custom and OEM components and sub-systems with drive electronics for light, plasma, X-ray and laser light, for VIS, IR, UV, high temperature, vacuum and cryogenic use in industrial, scientific, medical, aerospace and military applications worldwide.

EOPC IS THE INDUSTRY LEADER in OPTICAL RESONANT SCANNERS, TUNING FORK CHOPPERS and low cost LASER SAFETY SHUTTERS.

-----
