Microscope stage from Prior Scientific accommodates wafers up to 300 mm in diameter

Oct. 27, 2016

The H112 microscope stage offers a travel range >300 x 300 mm for precision scanning.

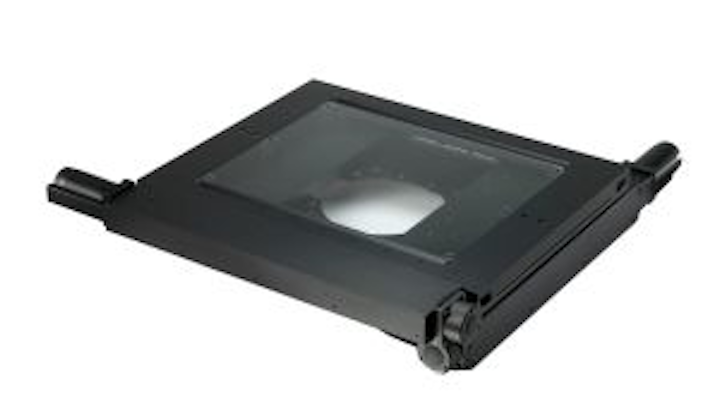

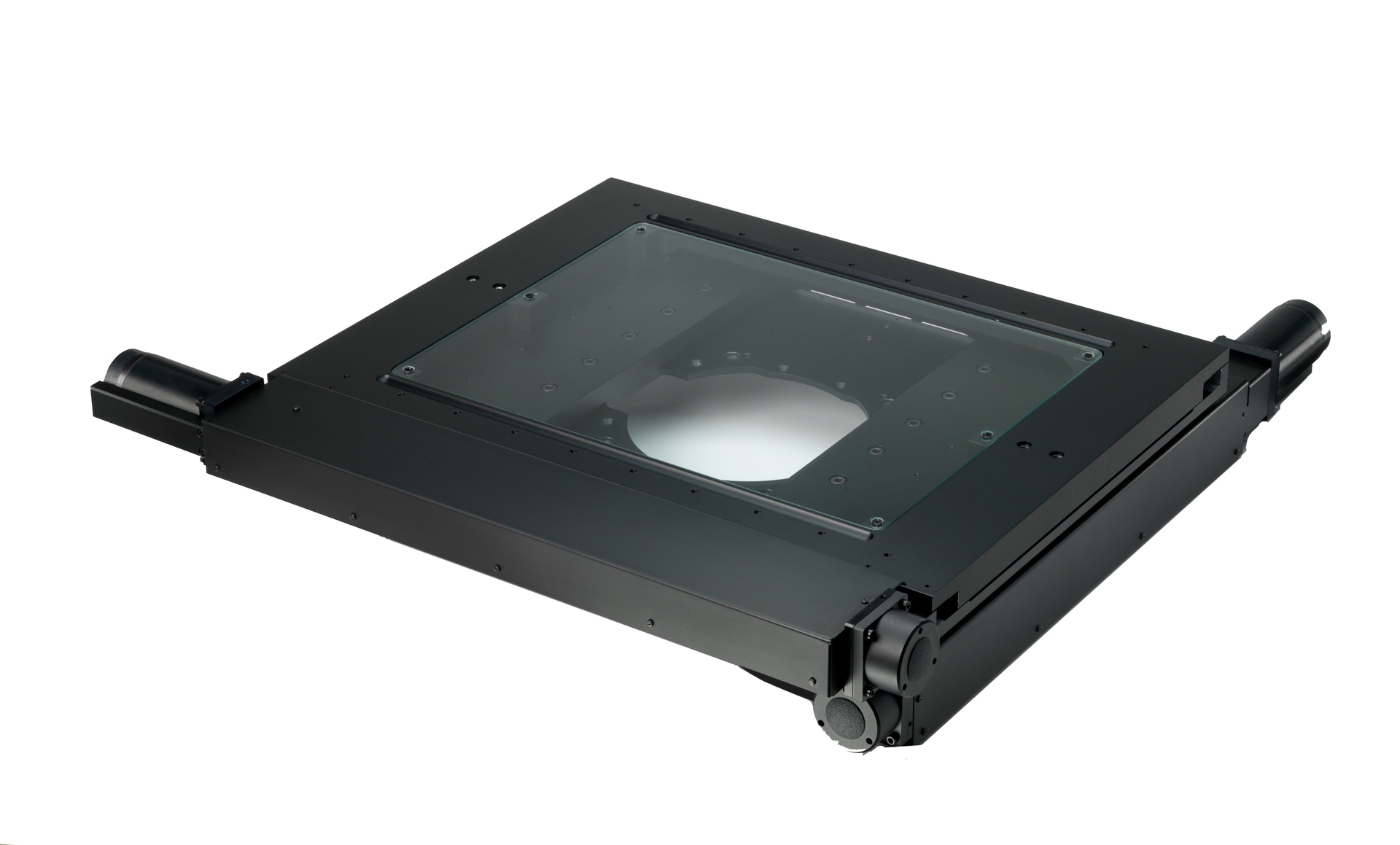

The H112 microscope stage offers a travel range >300 × 300 mm for precision scanning of semiconductor wafers, photomasks, flat-panel displays, and printed circuit boards. Using patented Intelligent Scanning Technology (IST), it accommodates wafers up to 300 mm diameter and samples up to 25 kg, and works with many robot arm wafer loaders.
Prior Scientific
Rockland, MA
www.prior.com

Continue Reading
